TECO Te3 Cast Iron 3 Phase
TECO Te3 Cast Iron 3 Phase
TECO Te3 Cast Iron 3 Phase
TECO Te3 Cast Iron 3 Phase
TECO Te3 Cast Iron 3 Phase
TECO Te3 Cast Iron 3 Phase
TECO Te3 Cast Iron 3 Phase
TECO Te3 Cast Iron 3 Phase
TECO Te3 Cast Iron 3 Phase
TECO Te3 Cast Iron 3 Phase
TECO Te3 Cast Iron 3 Phase
TECO Te3 Cast Iron 3 Phase
TECO Te3 Cast Iron 3 Phase

TECO Te3 Cast Iron 3 Phase

Efficient and Reliable Metric Frame Motors for Diverse Applications. IEC60034 Efficiency Standard

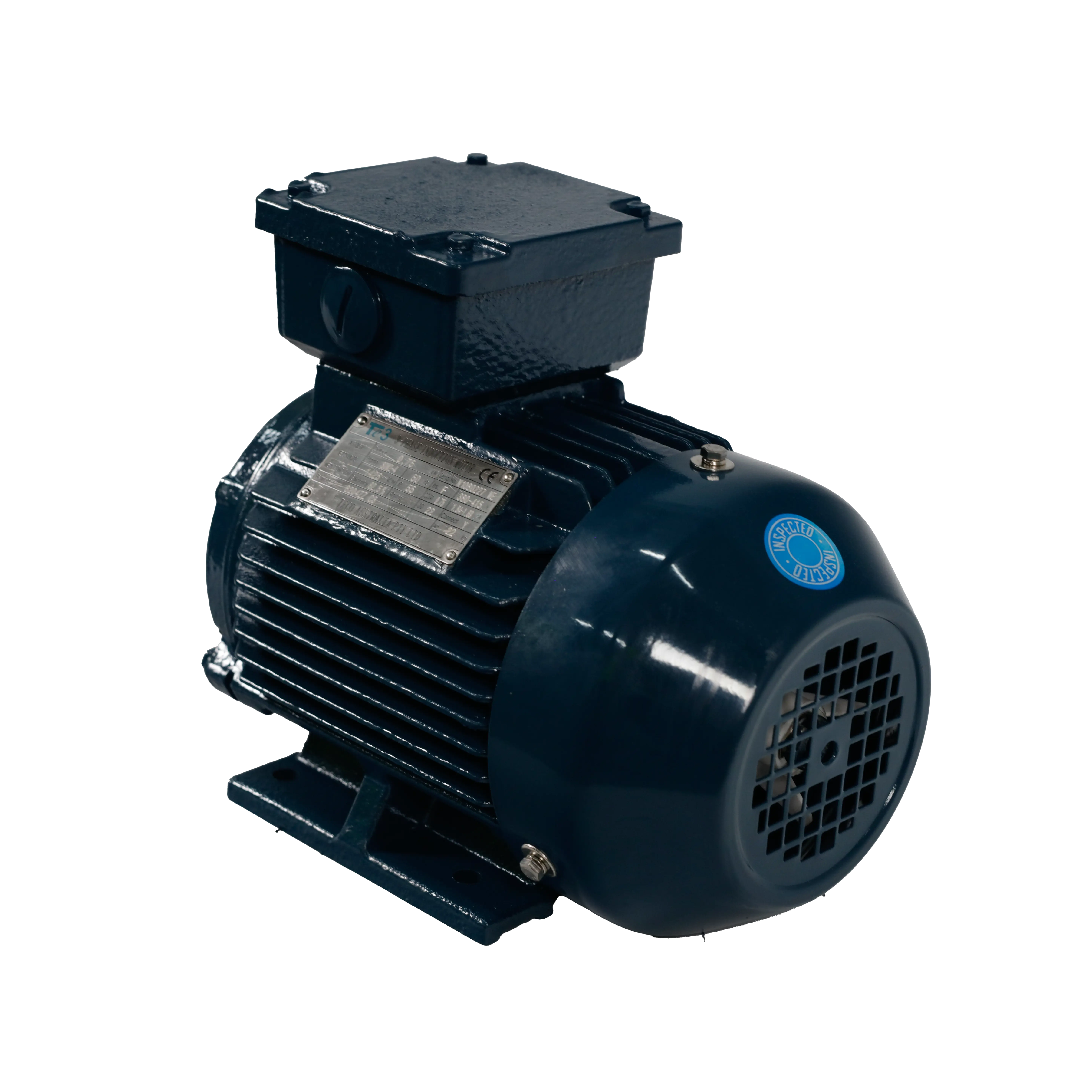

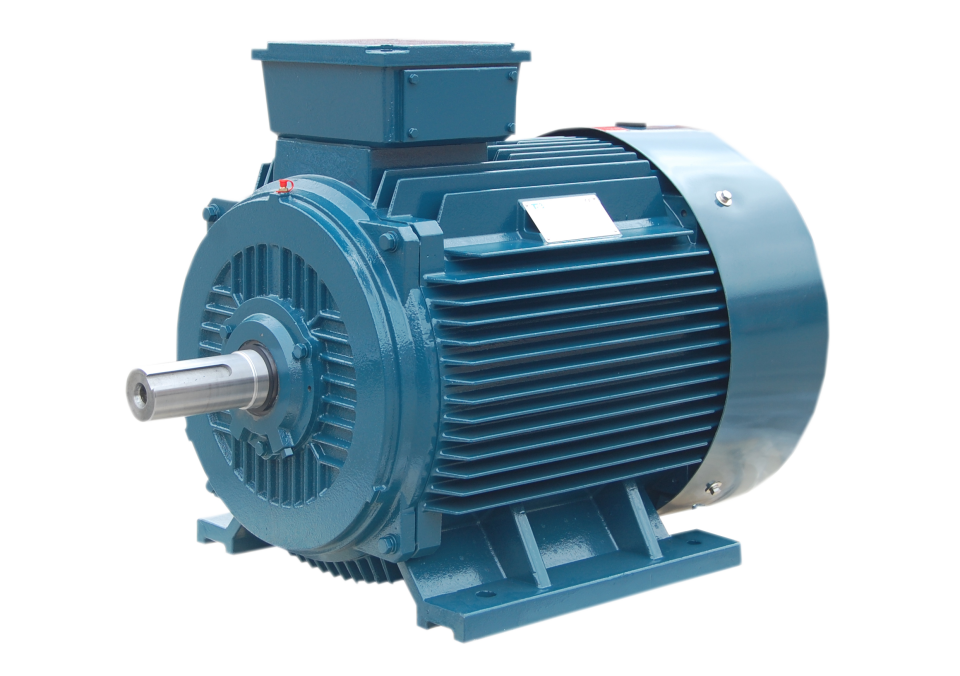

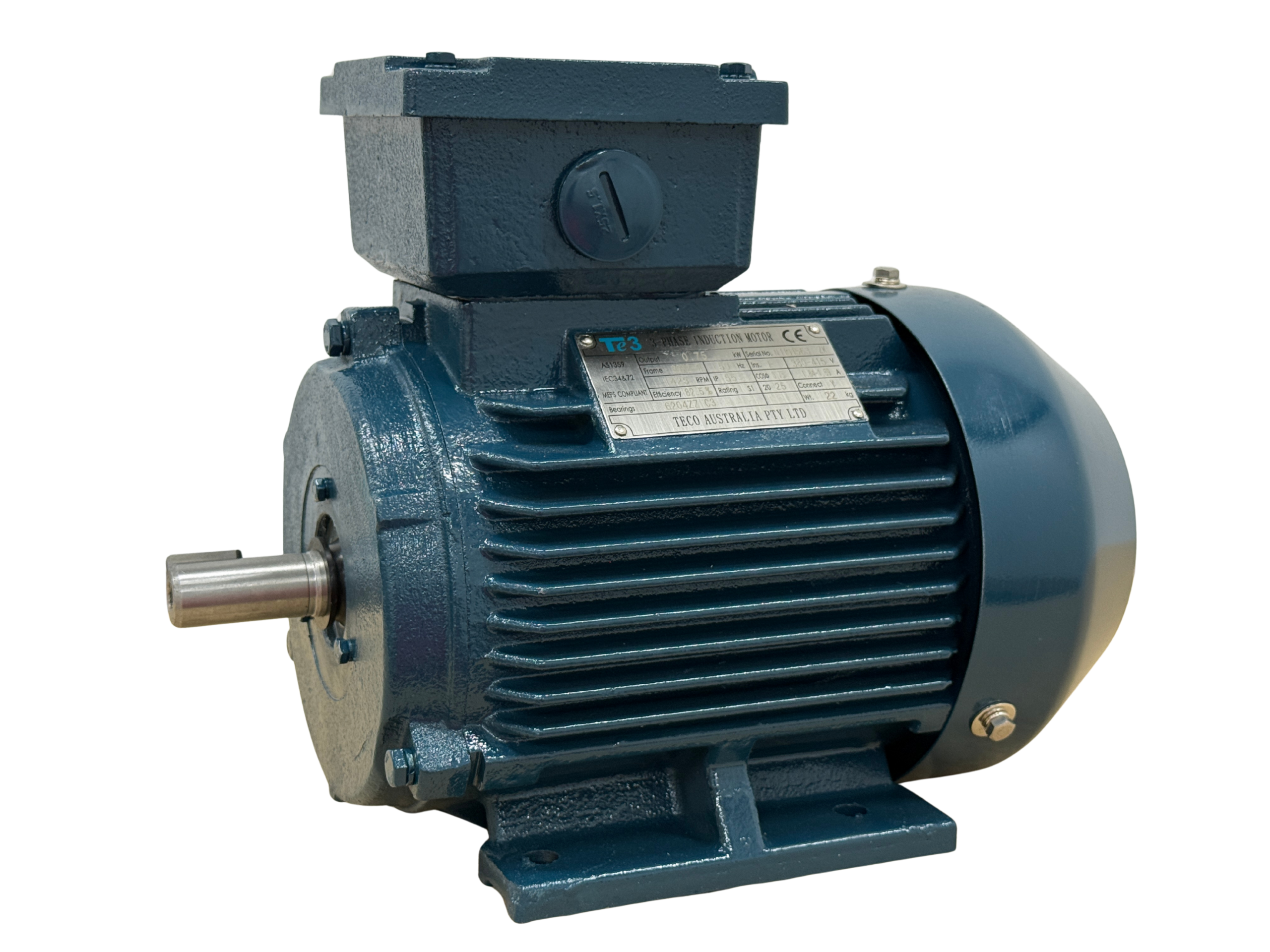

The TECO Te3 Cast Iron 3 Phase motor meets the IEC60034 frame allocation standards. It has a power range from 0.55 kW to 500 kW and features a Totally Enclosed Fan Cooled (IC411) design. It meets the IEC60034-30-1 (IE3) efficiency standard. TECO Te3 electric motor, constructed from cast iron, is engineered to operate on a 380~415 volt, 3-phase, 50 Hz power supply (alternative options can be provided upon request). It features Class F insulation with a Class B temperature increase and is continuously rated with a duty type of S1. The cast iron electric motor features a top-mounted terminal box.

TECO Te3 Cast Iron 3 Phase motor has an IP55 protection rating as standard. The motor is supplied painted Teal T63. To ensure customer satisfaction, the motor comes with a 2-year warranty, providing support and coverage against manufacturing defects.

Download Brochure
CONTACT US

Features

Benefits

Brochures

Manuals

Software

Drawings

Data Sheet
  • Metric frame motor to AS1359, IEC60034 frame allocation (some motors also to AS/BS frame allocations)
  • 0.55kW to 500kW
  • Totally Enclosed Fan Cooled (IC411)
  • Meets IEC60034-30-1 (IE3) Efficiency
  • 380~415 Volts 3 Phase 50 Hz (other supplies on request)
  • Class F insulation with a Class B temperature rise
  • Continuous rated, duty type S1
  • Cast Iron construction with top mounted terminal box
  • IP55 protection rating standard
  • Finish colour Teal T63 to AS2700

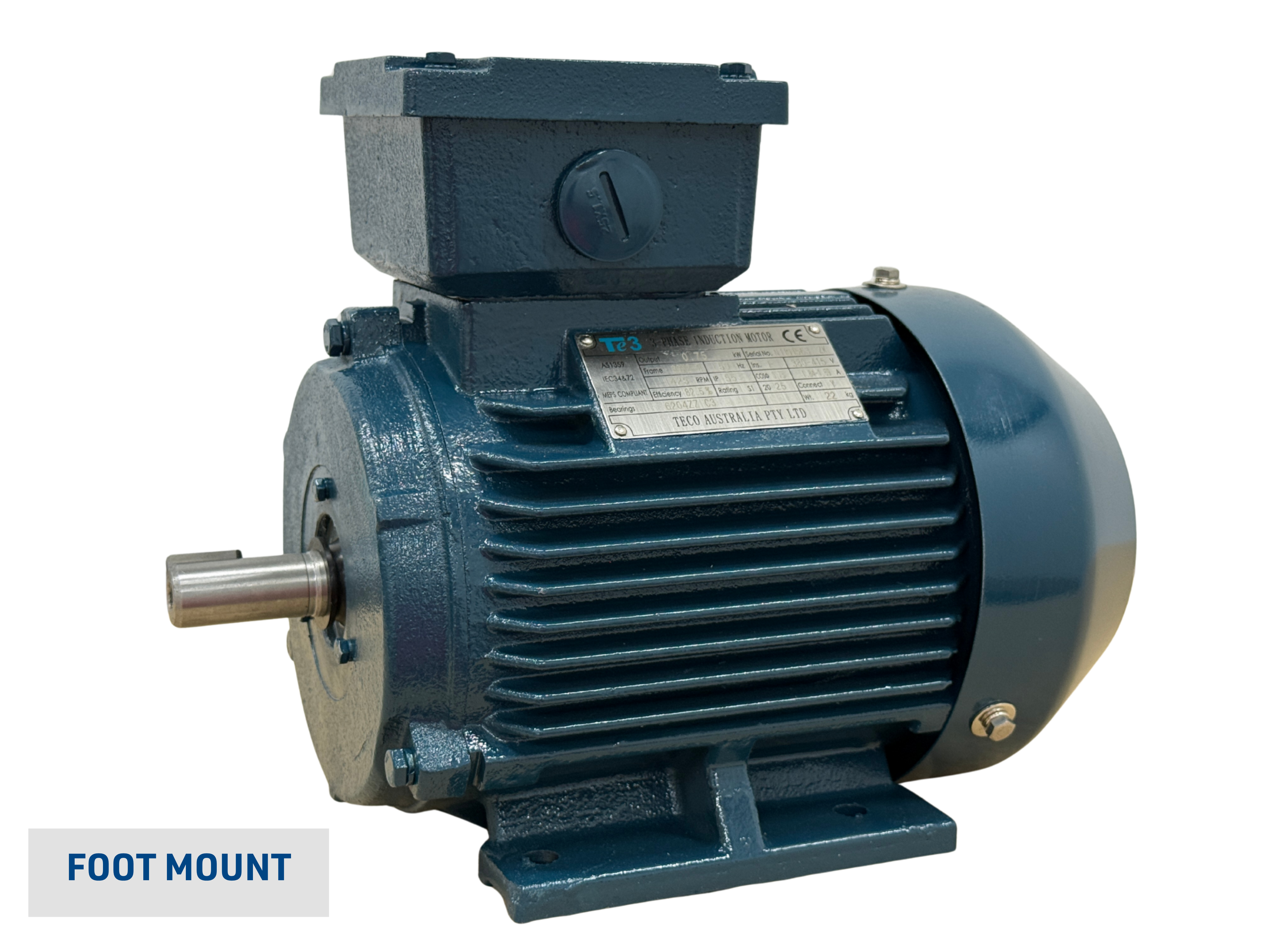

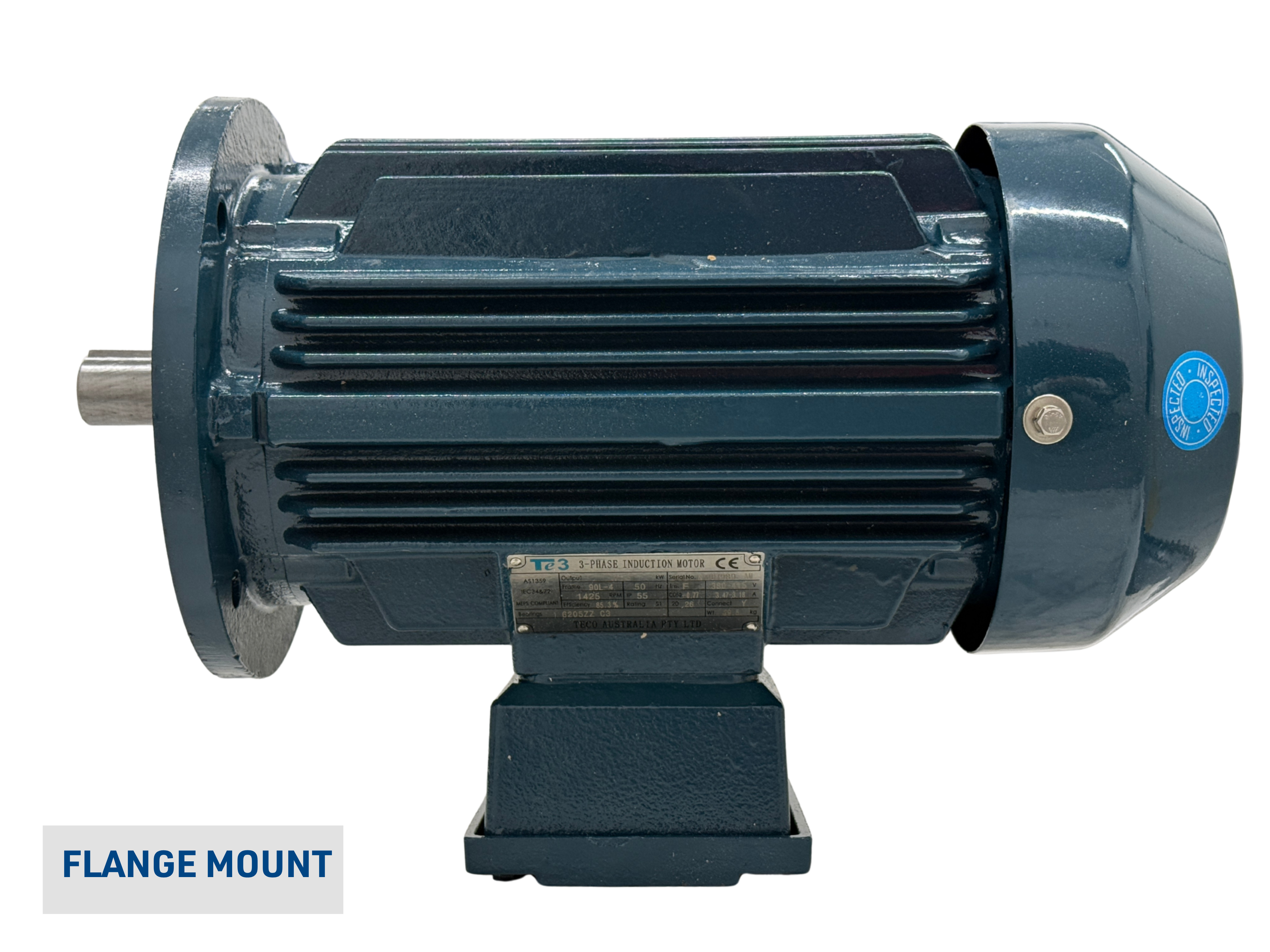

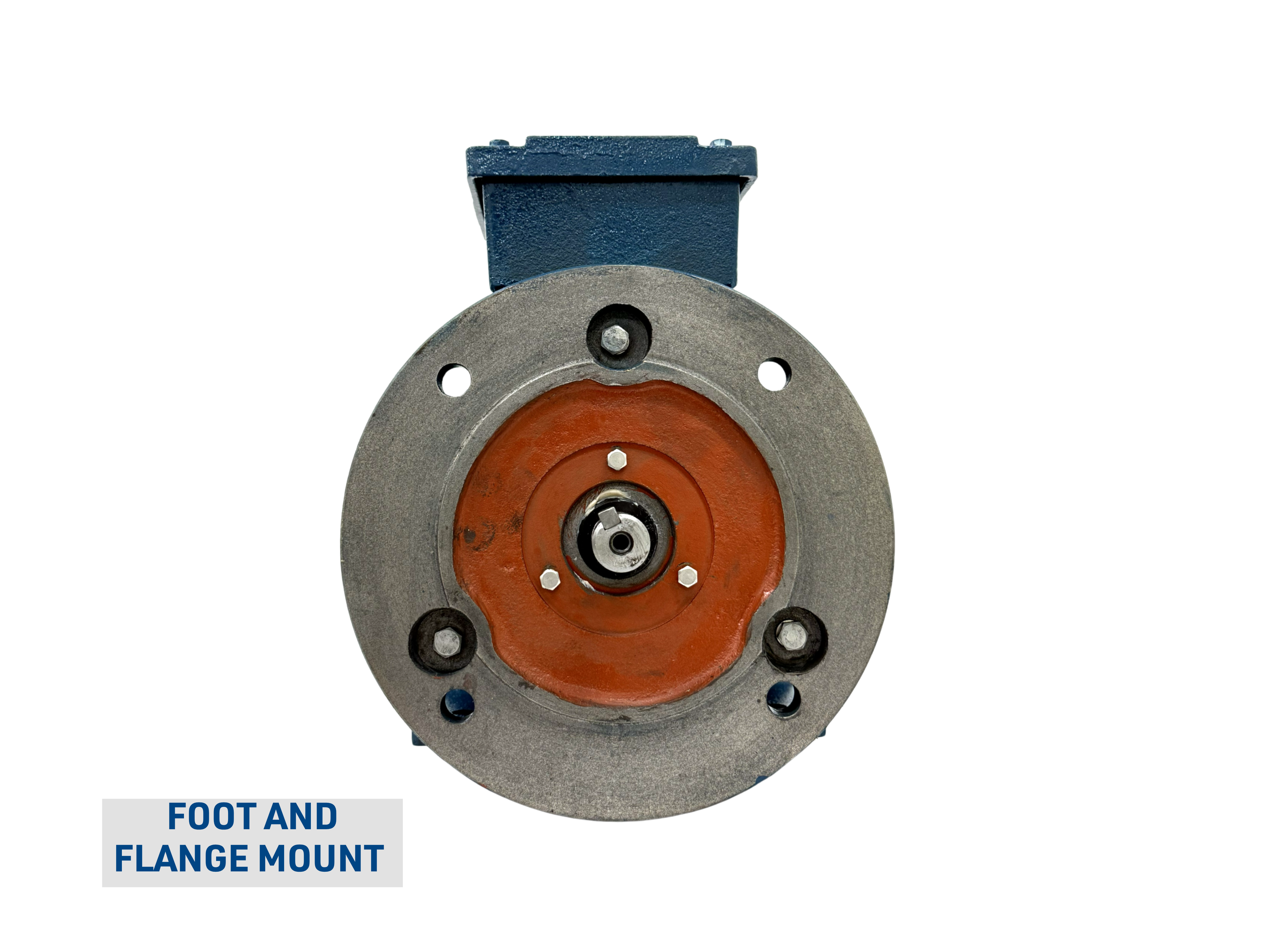

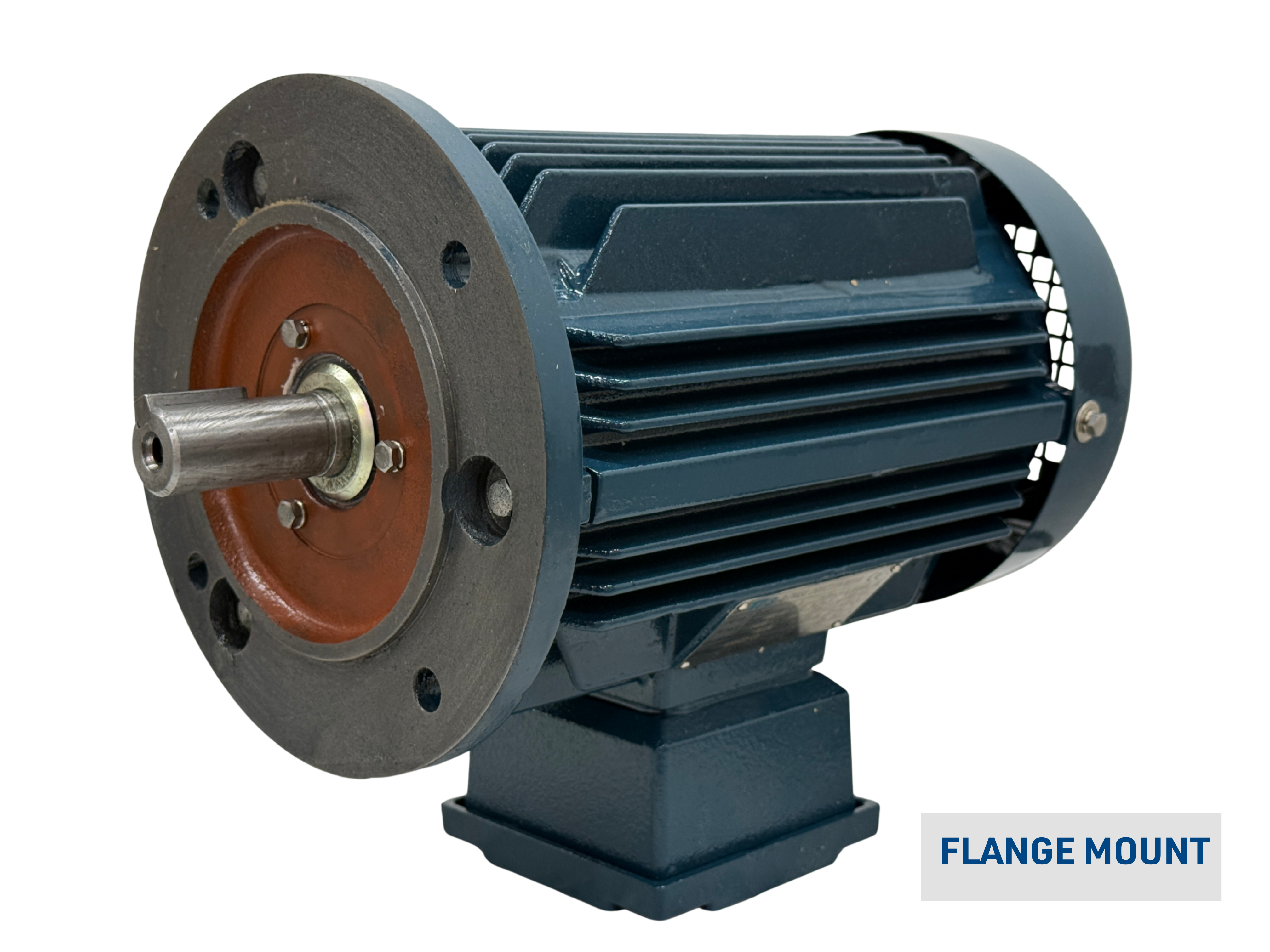

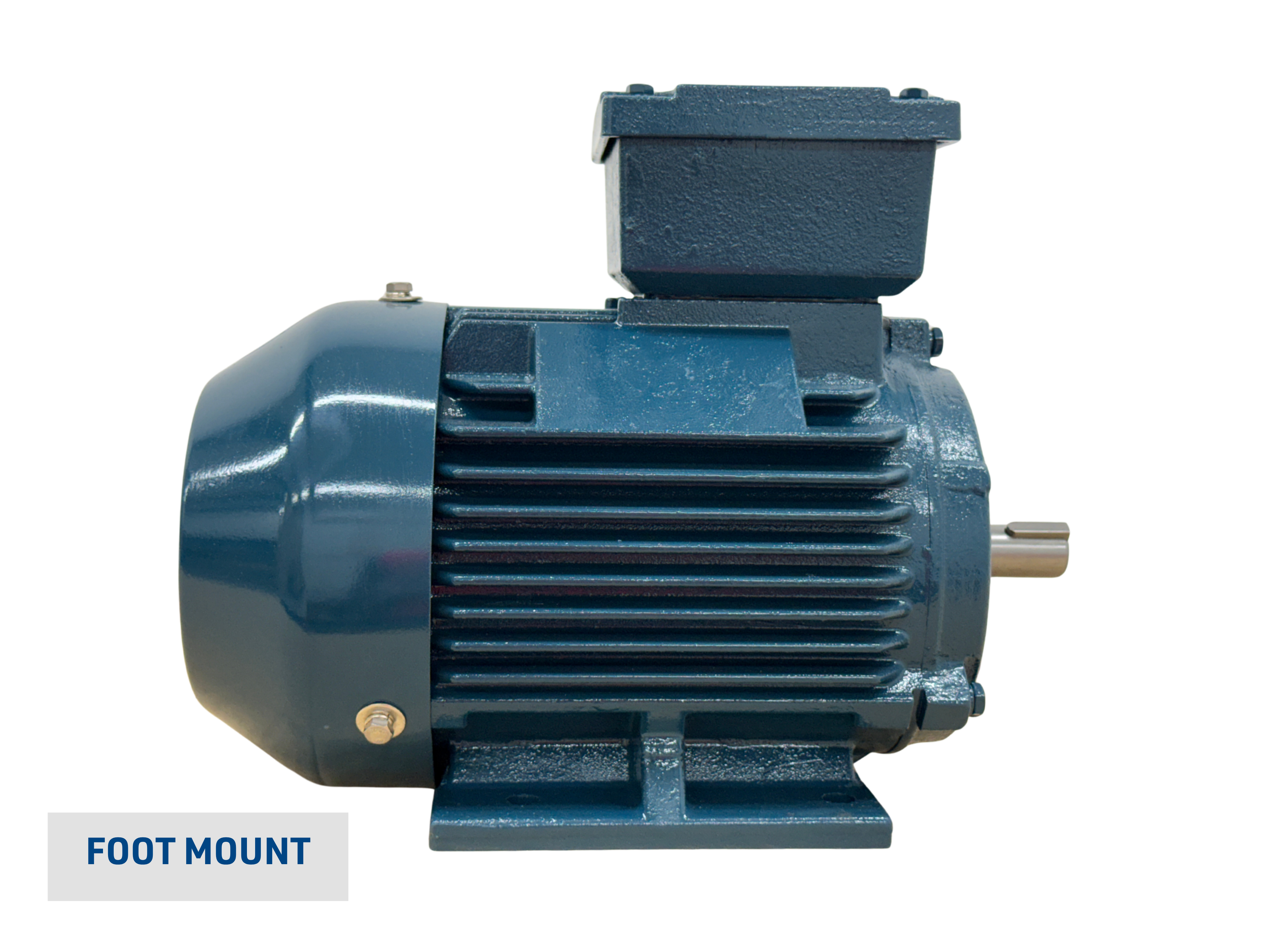

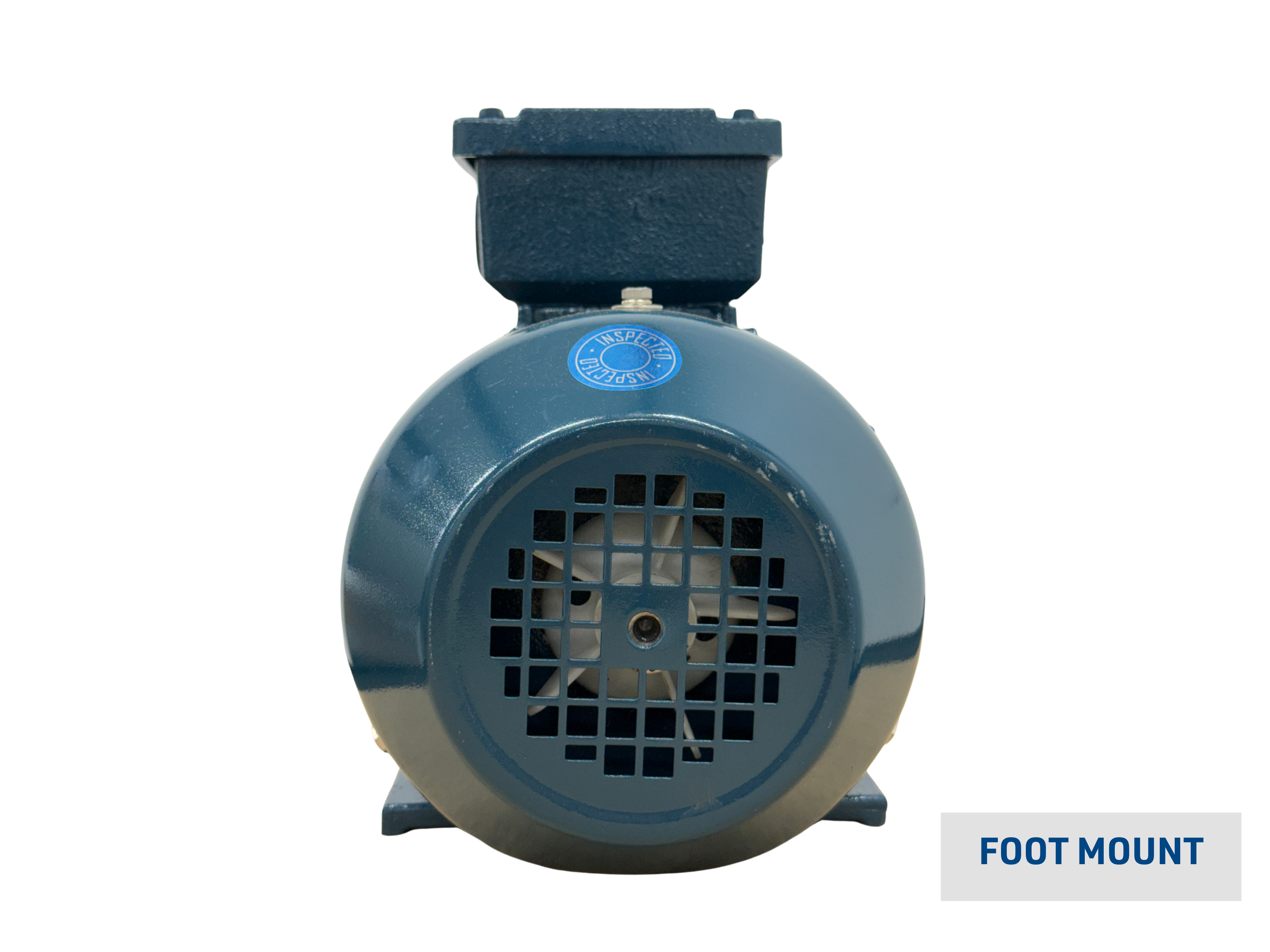

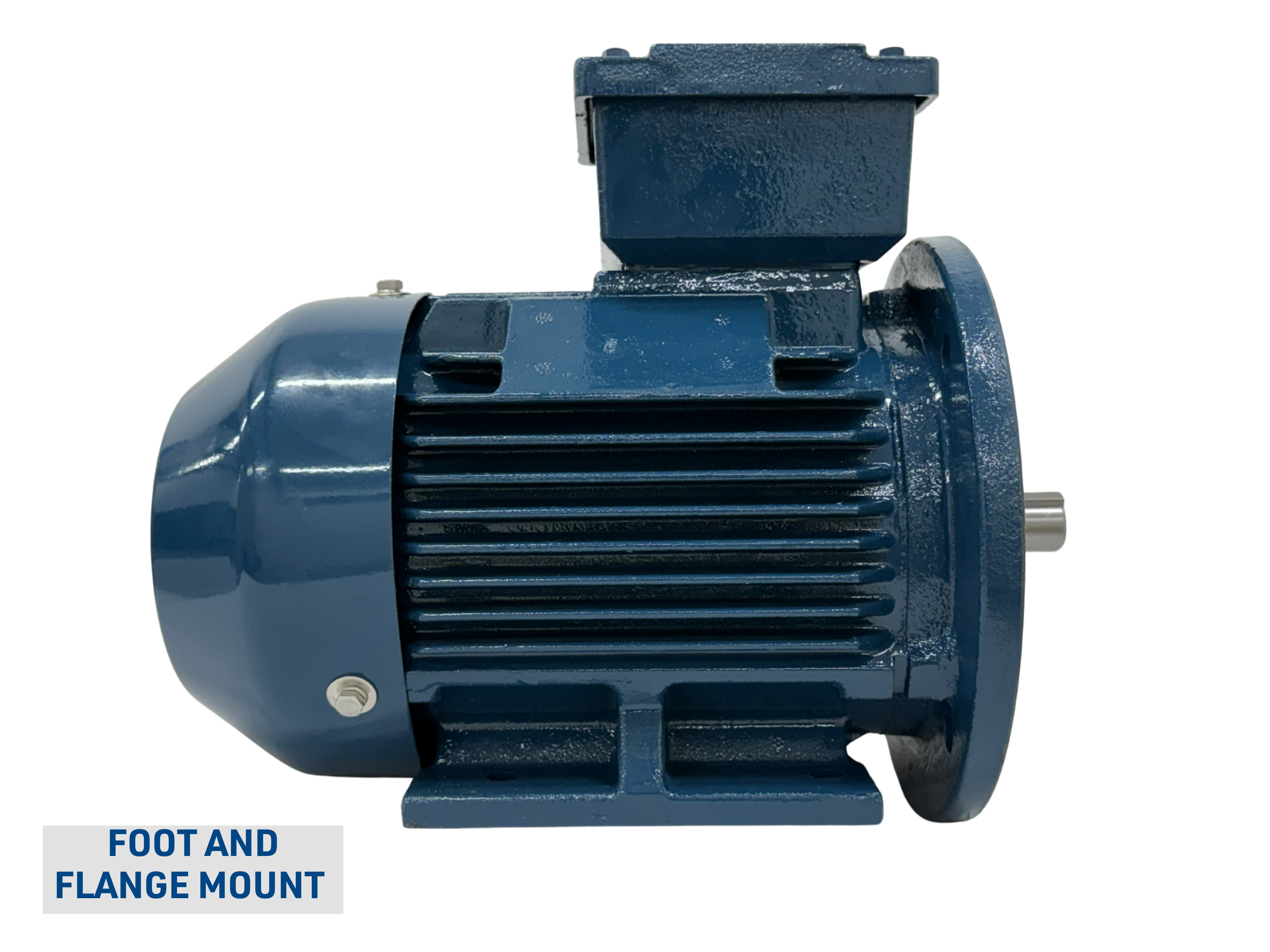

  • Mounting available – Foot, Foot and flange (C* and D types), Flange (C* and D types)
  • (C type flange on frame sizes D80-D132 only)
  • Wide range of options available
  • 2 year warranty
  • Compliant with industry standards, ensuring compatibility and reliability
  • Versatile power range suitable for various applications
  • Efficient cooling system with Totally Enclosed Fan design IC411, IC416 available on request
  • High efficiency, meeting IE3 efficiency standard for energy savings
  • Flexible power supply options to accommodate different requirements
  • Robust insulation and temperature capability for enhanced durability
  • Designed for continuous operation S1 Duty for dependable performance
  • Sturdy construction and top-mounted terminal box for easy installation
  • Reliable protection against dust and water ingress with IP55 rating
  • Teal T63 paint finish offers visual appeal.
  • Multiple mounting options for flexible installation
  • Expanded options to tailor the motor to specific needs

No software downloads.

TECO Te3 Cast Iron 3 Phase Drawings

wdt_ID wdt_created_by wdt_created_at wdt_last_edited_by wdt_last_edited_at Frame Size PDF Drawings CAD Drawings 3D Drawings
1 nate 11/11/2024 04:05 PM nate 19/11/2024 03:09 PM 80 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-1217.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-1217.zip Available upon request
2 nate 11/11/2024 04:05 PM nate 11/11/2024 04:05 PM 90L https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-1225.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-1225.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/3Ddrawings-1225.zip
3 nate 11/11/2024 04:05 PM mojodojo 24/03/2025 03:01 PM 90S https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2025/03/TE3-90S.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2025/03/TE3-90S-1.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2025/03/Te3-90S.zip
4 nate 11/11/2024 04:05 PM nate 11/11/2024 04:05 PM 100L https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-1230.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-1230.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/3Ddrawings-1230.zip
5 nate 11/11/2024 04:05 PM nate 11/11/2024 04:05 PM 112M https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-1234.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-1234.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/3Ddrawings-1234.zip
6 nate 11/11/2024 04:05 PM nate 11/11/2024 04:05 PM 132M https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-1245.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-1245.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/3Ddrawings-1245.zip
7 nate 11/11/2024 04:05 PM nate 11/11/2024 04:05 PM 132S https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-1241.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-1241.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/3Ddrawings-1241.zip
8 nate 11/11/2024 04:05 PM mojodojo 19/11/2024 02:00 PM 160L https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-1254.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-1254.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/3Ddrawings-1254.zip
9 nate 11/11/2024 04:05 PM nate 11/11/2024 04:05 PM 160M https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-1250.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-1250.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/3Ddrawings-1250.zip
10 nate 11/11/2024 04:05 PM nate 11/11/2024 04:05 PM 180L https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-1259.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-1259.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/3Ddrawings-1259.zip
Frame Size

TECO Te3 Cast Iron 3 Phase Datasheets

Features
  • Metric frame motor to AS1359, IEC60034 frame allocation (some motors also to AS/BS frame allocations)
  • 0.55kW to 500kW
  • Totally Enclosed Fan Cooled (IC411)
  • Meets IEC60034-30-1 (IE3) Efficiency
  • 380~415 Volts 3 Phase 50 Hz (other supplies on request)
  • Class F insulation with a Class B temperature rise
  • Continuous rated, duty type S1
  • Cast Iron construction with top mounted terminal box
  • IP55 protection rating standard
  • Finish colour Teal T63 to AS2700
  • Mounting available – Foot, Foot and flange (C* and D types), Flange (C* and D types)
  • (C type flange on frame sizes D80-D132 only)
  • Wide range of options available
  • 2 year warranty

Benefits
  • Compliant with industry standards, ensuring compatibility and reliability
  • Versatile power range suitable for various applications
  • Efficient cooling system with Totally Enclosed Fan design IC411, IC416 available on request
  • High efficiency, meeting IE3 efficiency standard for energy savings
  • Flexible power supply options to accommodate different requirements
  • Robust insulation and temperature capability for enhanced durability
  • Designed for continuous operation S1 Duty for dependable performance
  • Sturdy construction and top-mounted terminal box for easy installation
  • Reliable protection against dust and water ingress with IP55 rating
  • Teal T63 paint finish offers visual appeal.
  • Multiple mounting options for flexible installation
  • Expanded options to tailor the motor to specific needs

Brochures

Manuals

Software

No software downloads.

Drawings

TECO Te3 Cast Iron 3 Phase Drawings

wdt_ID wdt_created_by wdt_created_at wdt_last_edited_by wdt_last_edited_at Frame Size PDF Drawings CAD Drawings 3D Drawings
1 nate 11/11/2024 04:05 PM nate 19/11/2024 03:09 PM 80 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-1217.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-1217.zip Available upon request
2 nate 11/11/2024 04:05 PM nate 11/11/2024 04:05 PM 90L https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-1225.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-1225.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/3Ddrawings-1225.zip
3 nate 11/11/2024 04:05 PM mojodojo 24/03/2025 03:01 PM 90S https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2025/03/TE3-90S.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2025/03/TE3-90S-1.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2025/03/Te3-90S.zip
4 nate 11/11/2024 04:05 PM nate 11/11/2024 04:05 PM 100L https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-1230.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-1230.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/3Ddrawings-1230.zip
5 nate 11/11/2024 04:05 PM nate 11/11/2024 04:05 PM 112M https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-1234.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-1234.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/3Ddrawings-1234.zip
6 nate 11/11/2024 04:05 PM nate 11/11/2024 04:05 PM 132M https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-1245.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-1245.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/3Ddrawings-1245.zip
7 nate 11/11/2024 04:05 PM nate 11/11/2024 04:05 PM 132S https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-1241.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-1241.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/3Ddrawings-1241.zip
8 nate 11/11/2024 04:05 PM mojodojo 19/11/2024 02:00 PM 160L https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-1254.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-1254.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/3Ddrawings-1254.zip
9 nate 11/11/2024 04:05 PM nate 11/11/2024 04:05 PM 160M https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-1250.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-1250.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/3Ddrawings-1250.zip
10 nate 11/11/2024 04:05 PM nate 11/11/2024 04:05 PM 180L https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-1259.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-1259.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/3Ddrawings-1259.zip
Frame Size

Data Sheet

TECO Te3 Cast Iron 3 Phase Datasheets

TECO Te3 Cast Iron 3 Phase
