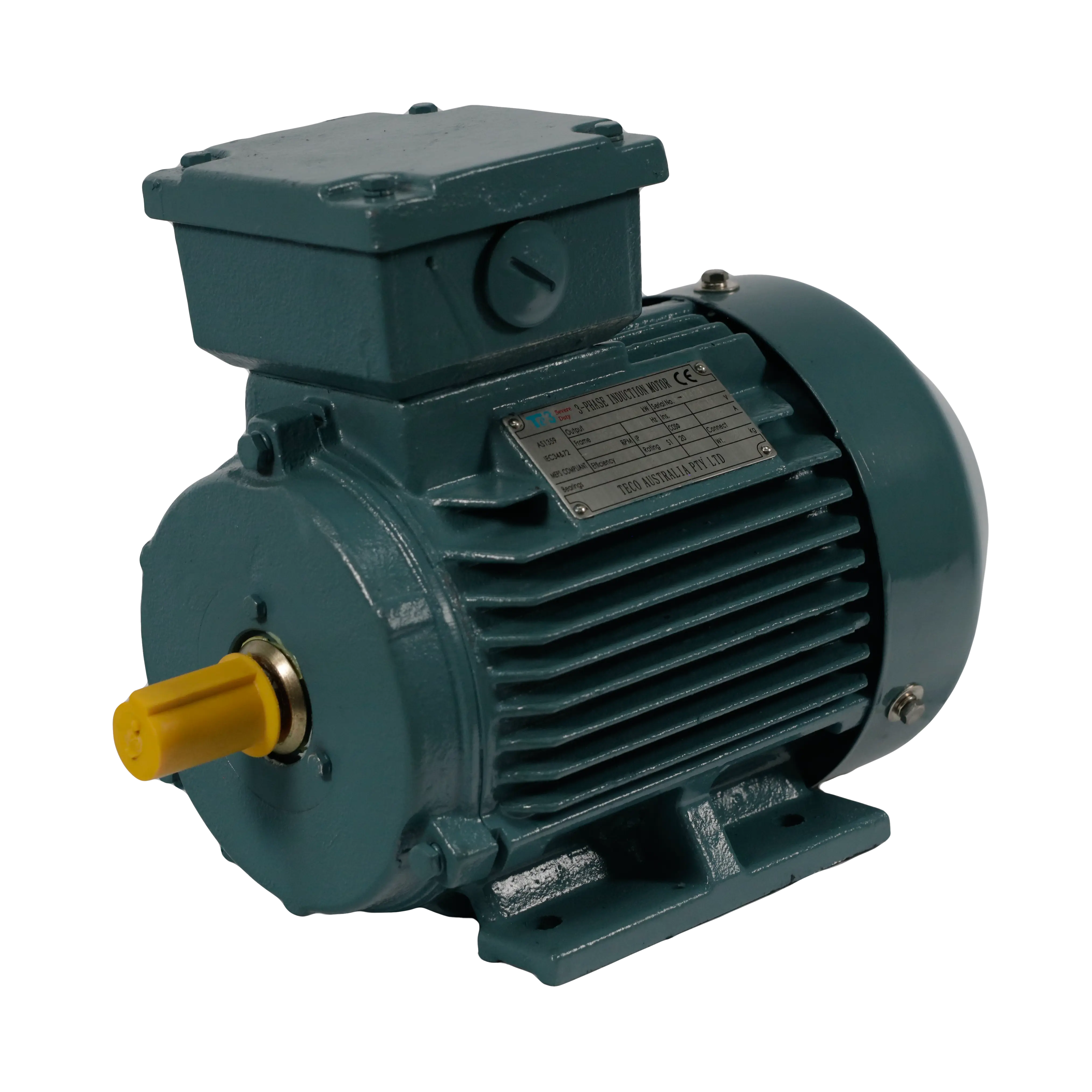

Powerful and Efficient: Introducing our Metric Frame Motors, IE3 Efficiency Standard, IP66 Protection

TECO Te3 Severe duty Cast Iron 3 Phase is a metric frame motor that adheres to IEC60034 standards.

The power range of this device varies between 0.55 kW and 500 kW and it is specifically designed for Totally Enclosed Fan Cooled (IC411) operation.

TECO Te3 Severe duty motor meets the IEC60034-30-1 (IE3) efficiency standard, operating at 380-415 Volts, 3-phase, and 50 Hz (with other supply options available upon request).

It has Class H insulation with a Class B temperature rise and is designed for continuous operation (duty type S1).

The motor has a cast iron construction with a top-mounted terminal box and an IP66 protection rating. The motor is supplied painted Blue Jade T24.
To ensure customer satisfaction, the motor comes with a 2-year warranty, providing support and coverage against manufacturing defects.

Download Brochure
CONTACT US

Features

Benefits

Brochures

Manuals

Software

Drawings

Data Sheet
  • Metric frame motor to AS1359, IEC60034 frame allocation (some motors also to AS/BS frame allocations)
  • 0.55kW to 500kW
  • Totally Enclosed Fan Cooled (IC411)
  • Meets IEC60034-30-1 (IE3) Efficiency
  • 380~415 Volts 3 Phase 50 Hz (other supplies on request)
  • Class H insulation with a Class B temperature rise
  • Continuous rated, duty type S1

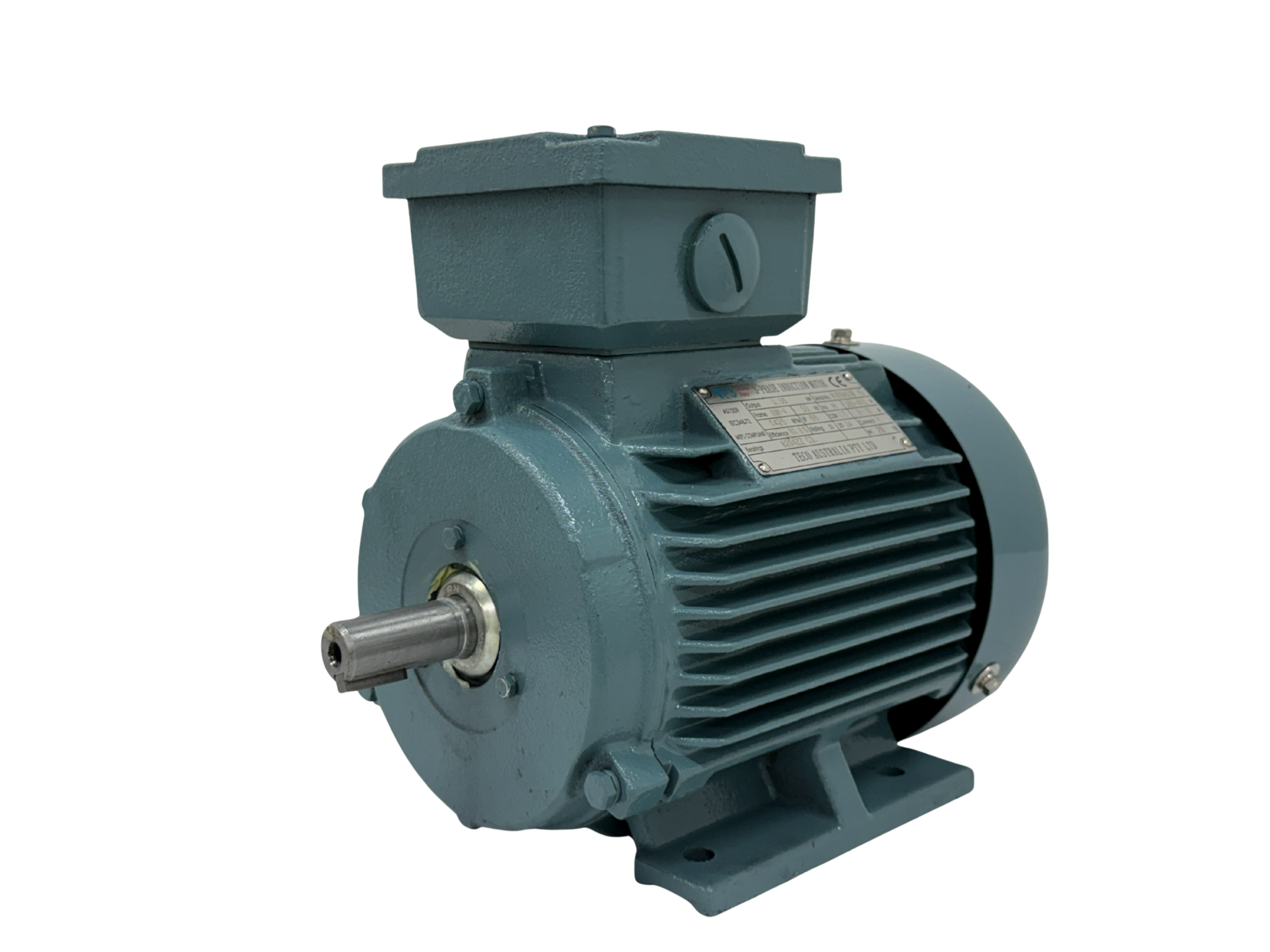

  • Cast Iron construction with top mounted terminal box
  • IP66 protection rating standard
  • Finish colour Blue Jade T24 to AS2700

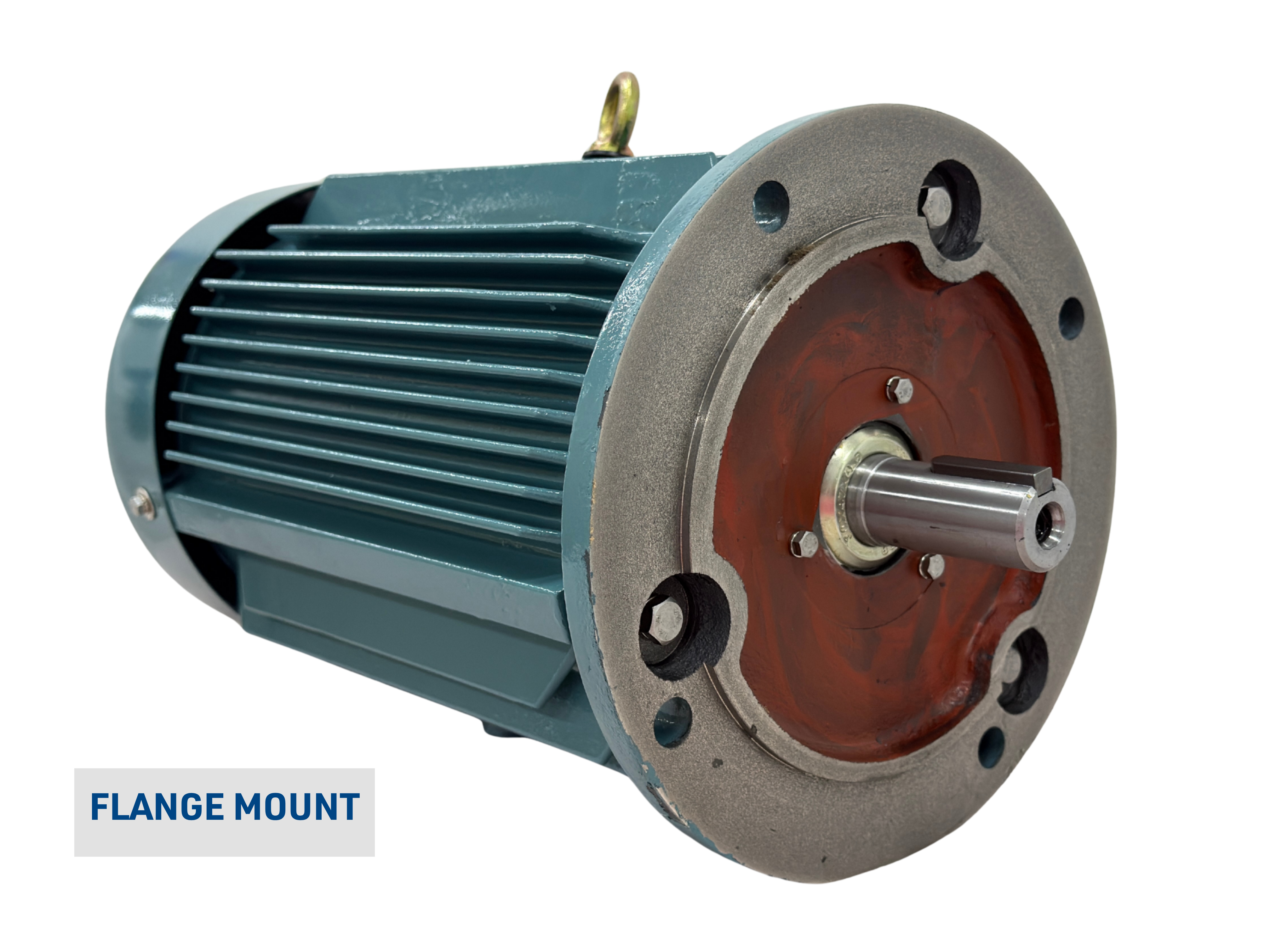

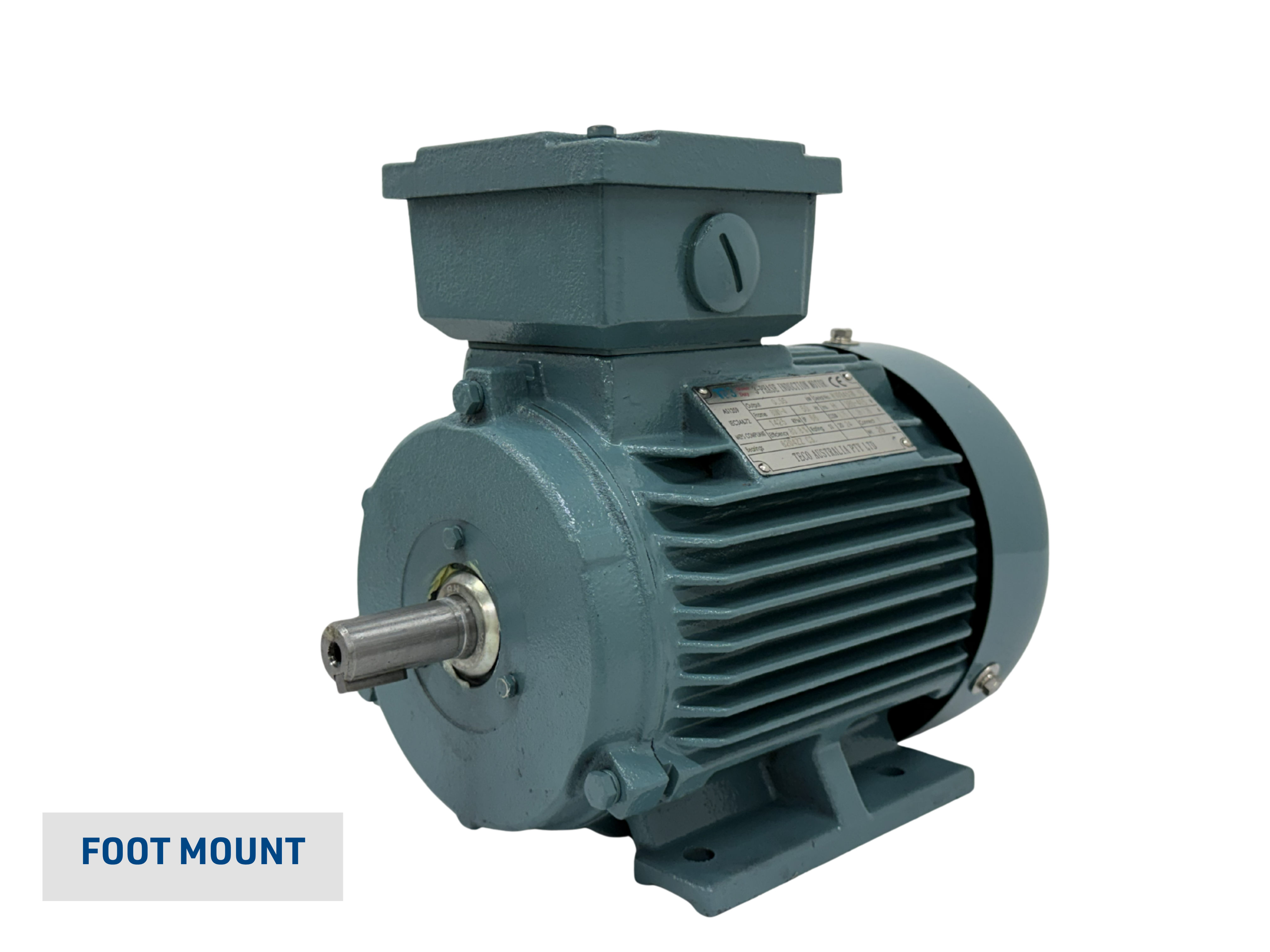

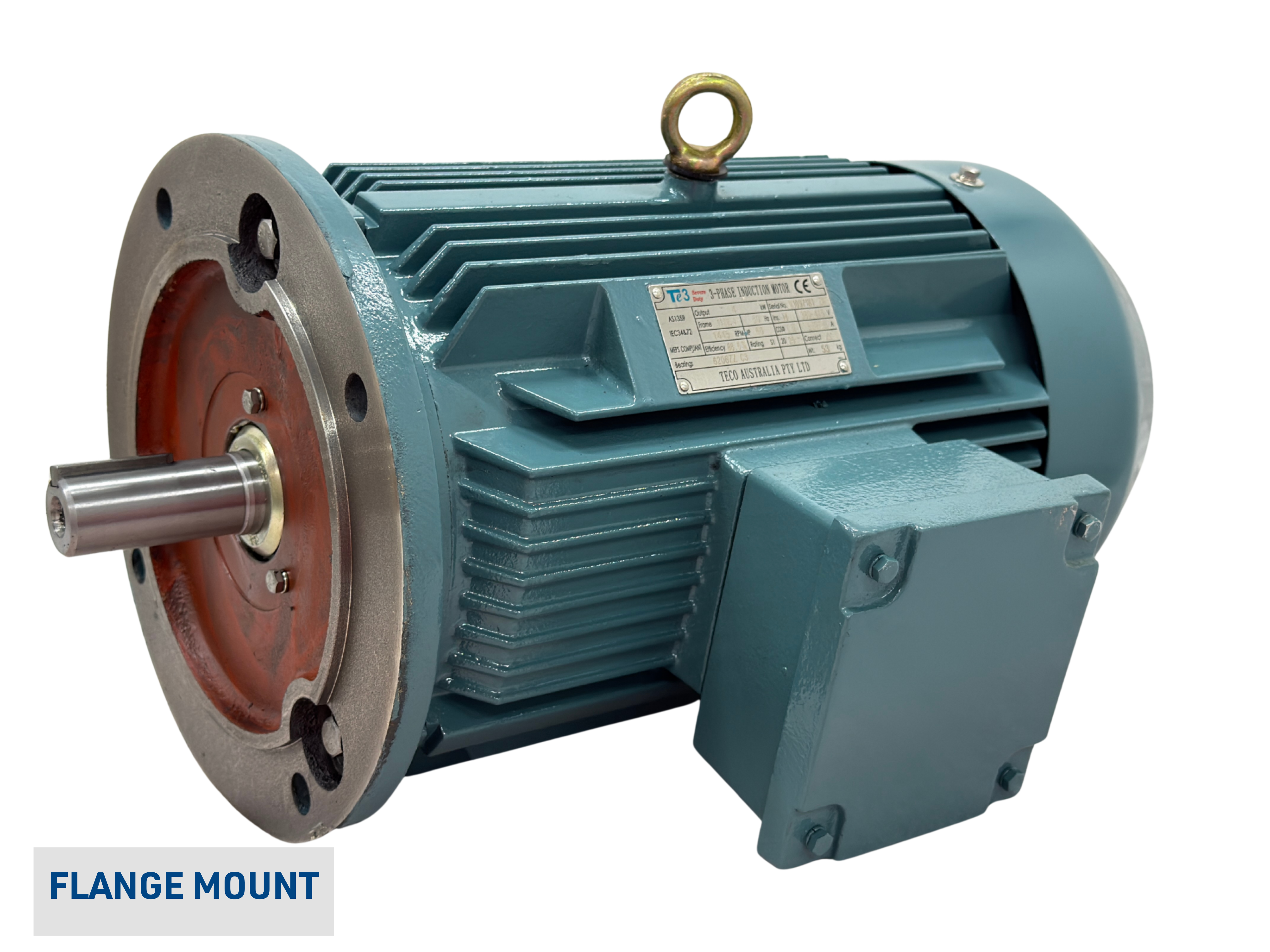

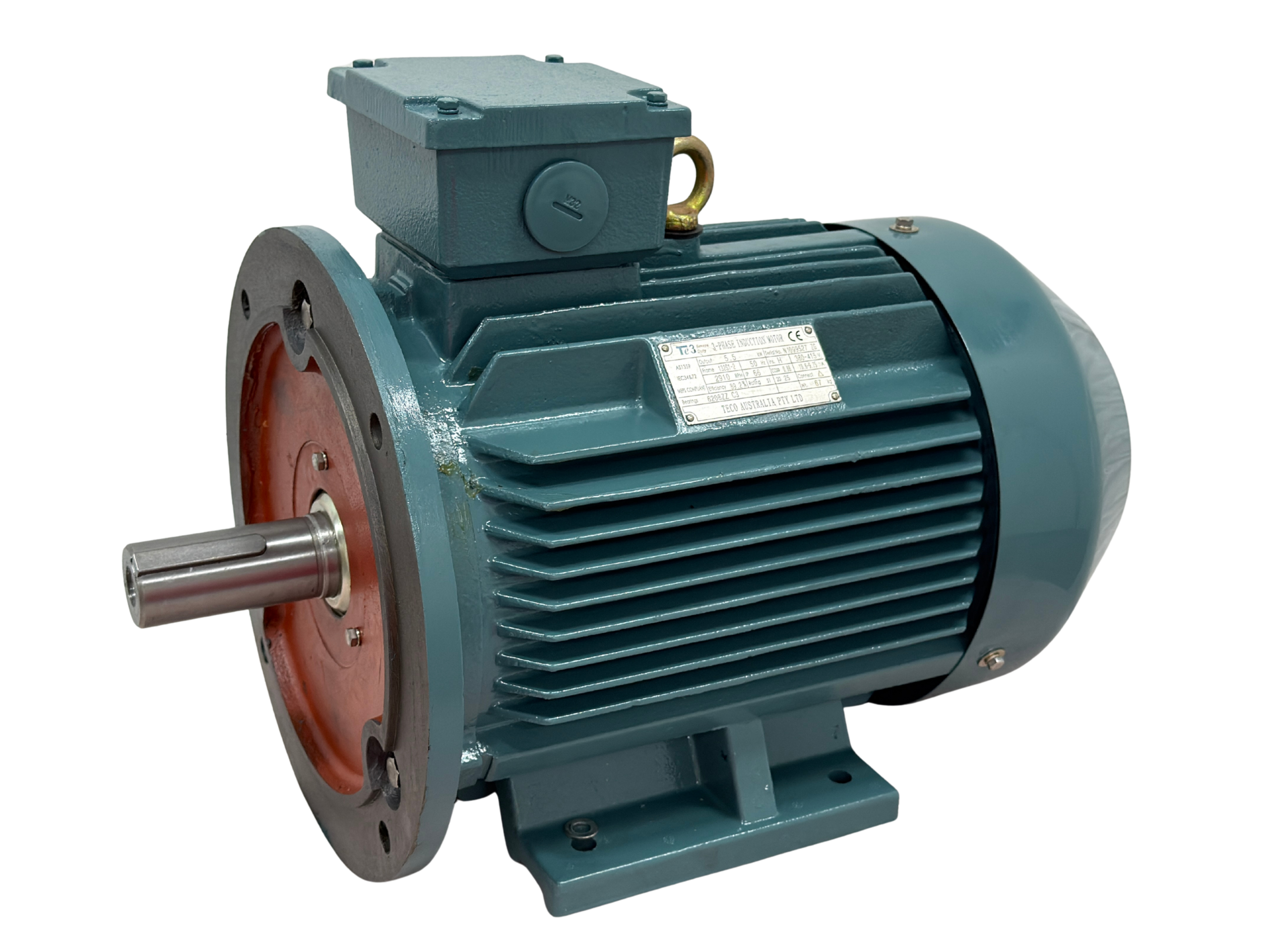

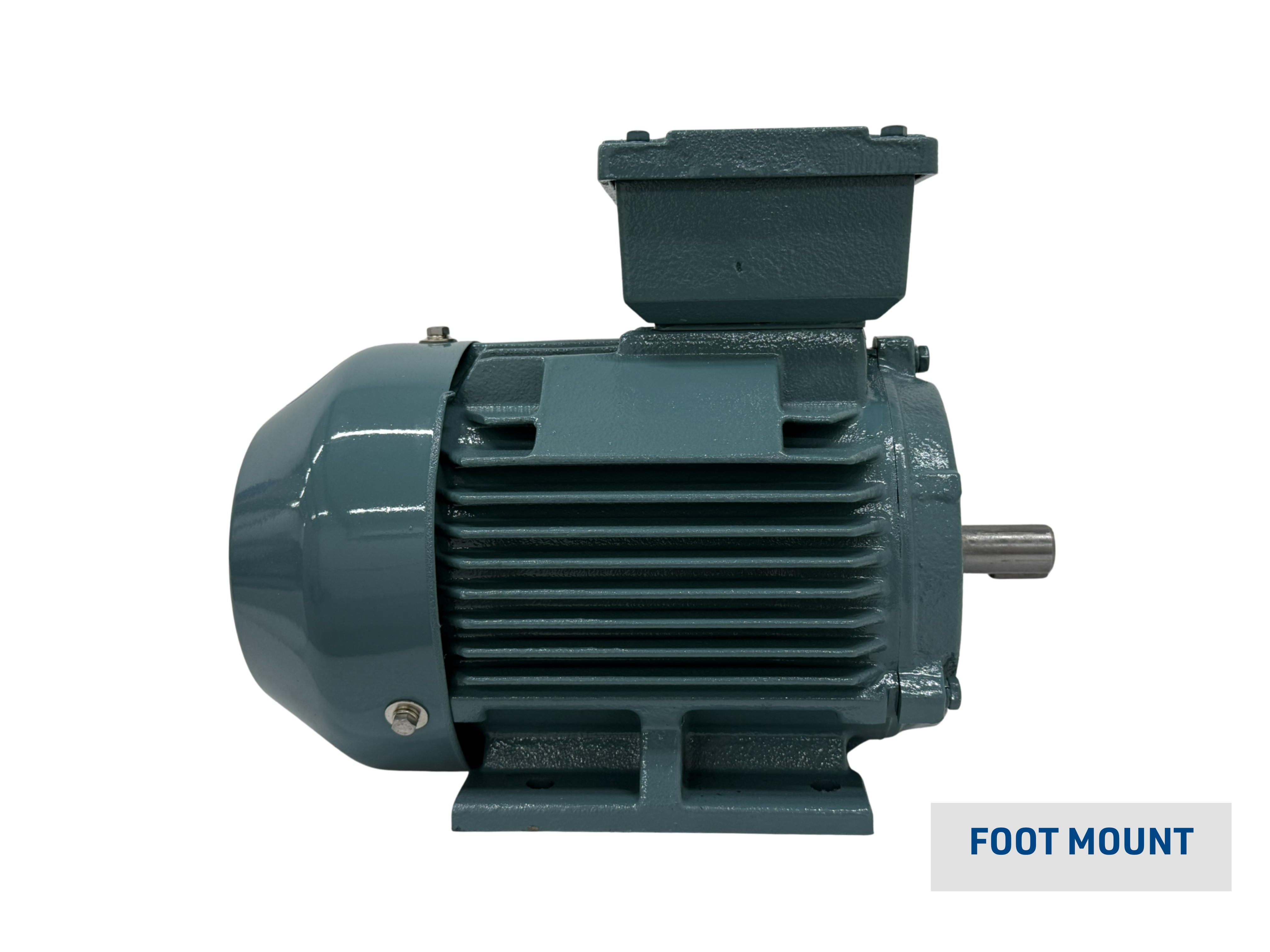

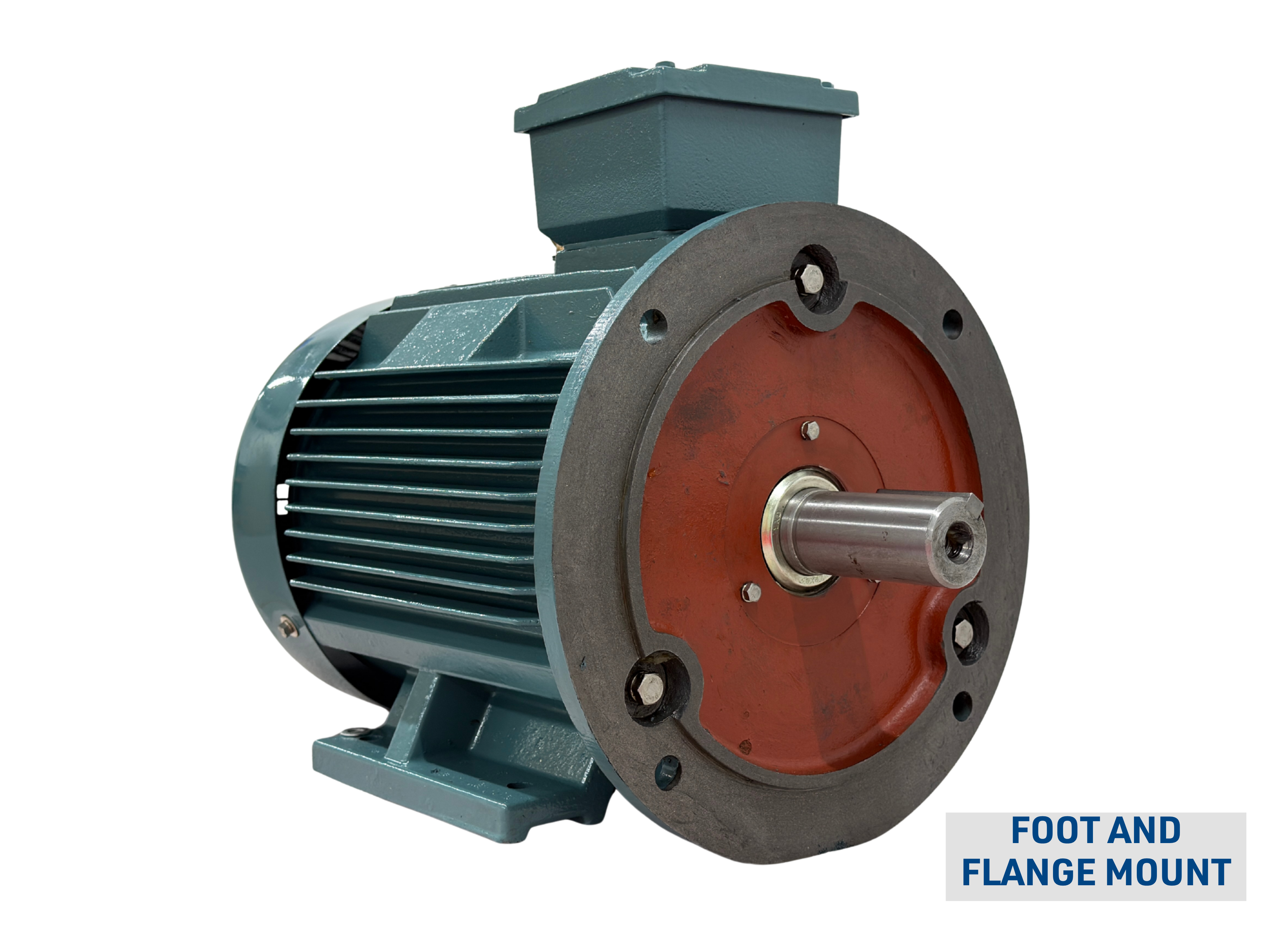

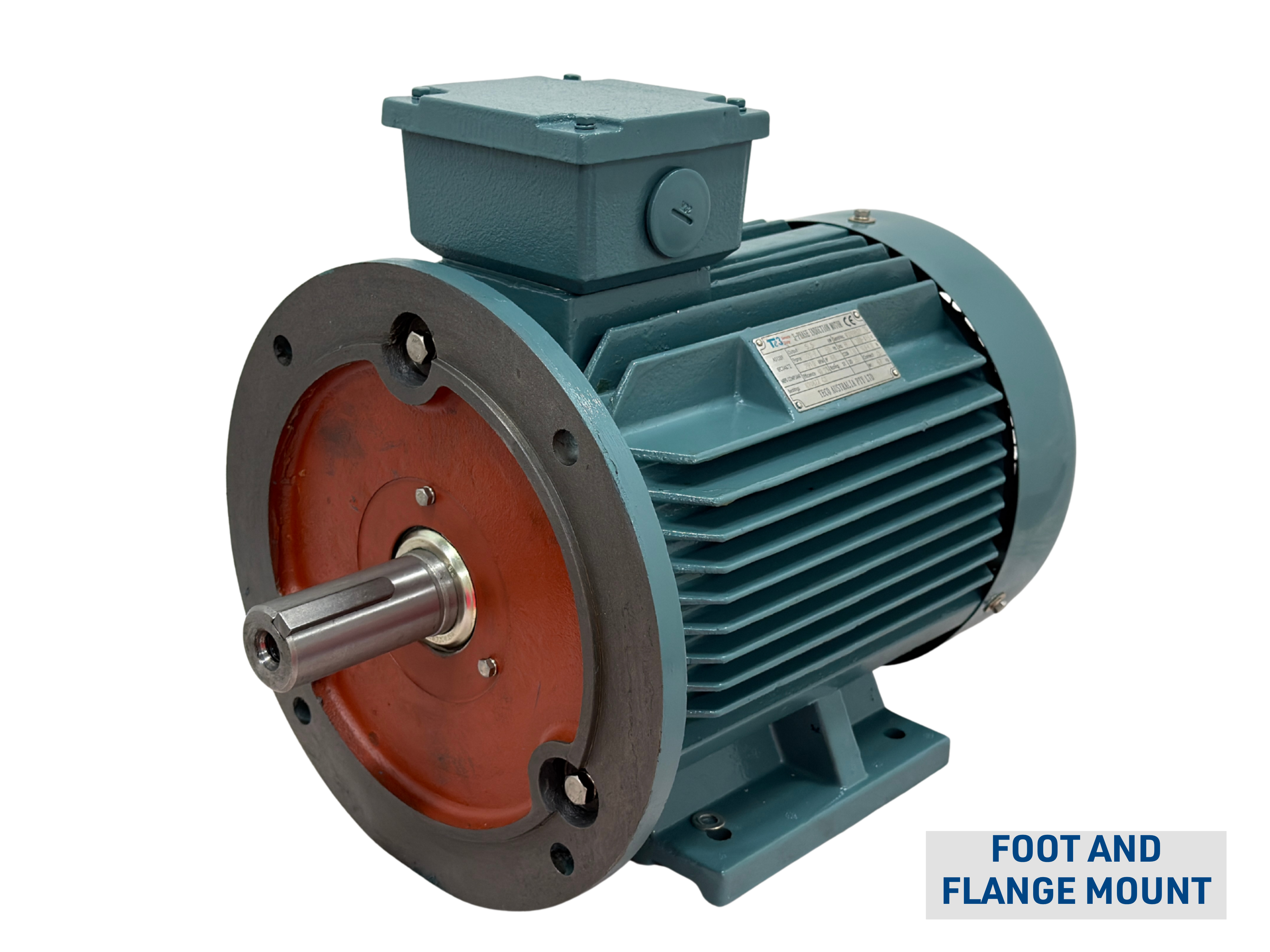

  • Mounting available – Foot, Foot and flange (C* and D types), Flange (C* and D types)
  • (C type flange on frame sizes D80-D132 only)
  • Wide range of options available
  • 2 year warranty
  • Operates with high energy efficiency, promoting cost savings and reduced environmental impact
  • Versatile Power Range providing flexibility to meet different application requirements
  • Reliable and Durable Construction ensures the motor’s long-term reliability and ability to withstand demanding operating conditions
  • IP 66 Protection rating against dust and water ingress, making it suitable for harsh environments
  • Flexible Mounting Options allowing for easy and adaptable installation in different setups

No software downloads.

TECO Te3 Severe Duty Cast Iron 3 Phase Drawings

wdt_ID wdt_created_by wdt_created_at wdt_last_edited_by wdt_last_edited_at Frame Size PDF Drawings CAD Drawings 3D Drawings
1 nate 11/11/2024 04:21 PM nate 19/11/2024 04:01 PM 80 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-1485.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-1485.zip Available Upon Request
2 nate 11/11/2024 04:21 PM nate 19/11/2024 04:01 PM 90L https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-1493.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-1493.zip Available Upon Request
3 nate 11/11/2024 04:21 PM nate 19/11/2024 04:01 PM 90S https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-1489.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-1489.zip Available Upon Request
4 nate 11/11/2024 04:21 PM nate 19/11/2024 04:01 PM 100L https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-1498.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-1498.zip Available Upon Request
5 nate 11/11/2024 04:21 PM nate 19/11/2024 04:02 PM 112M https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-1502.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-1502.zip Available Upon Request
6 nate 11/11/2024 04:21 PM nate 19/11/2024 04:02 PM 132M https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-1513.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-1513.zip Available Upon Request
7 nate 11/11/2024 04:21 PM nate 19/11/2024 04:02 PM 132S https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-1509.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-1509.zip Available Upon Request
8 nate 11/11/2024 04:21 PM nate 19/11/2024 04:02 PM 160L https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-1522.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-1522.zip Available Upon Request
9 nate 11/11/2024 04:21 PM nate 19/11/2024 04:02 PM 160M https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-1518.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-1518.zip Available Upon Request
10 nate 11/11/2024 04:21 PM nate 19/11/2024 04:03 PM 180L https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-1527.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-1527.zip Available Upon Request
Frame Size

TECO Te3 Severe Duty Cast Iron 3 Phase Datasheets

wdt_ID wdt_created_by wdt_created_at wdt_last_edited_by wdt_last_edited_at KW Rating Voltage Phases No of Poles Frame Datasheet PDF
1 nate 11/11/2024 11:39 AM nate 11/11/2024 11:39 AM 0.55 240 3 4 80 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/Datasheet-1455.pdf
2 nate 11/11/2024 11:39 AM nate 11/11/2024 11:39 AM 0.55 415 3 4 80 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/Datasheet-1478.pdf
3 nate 11/11/2024 11:39 AM nate 11/11/2024 11:39 AM 0.55 240 3 6 80 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/Datasheet-1456.pdf
4 nate 11/11/2024 11:39 AM nate 11/11/2024 11:39 AM 0.55 415 3 6 80 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/Datasheet-1479.pdf
5 nate 11/11/2024 11:39 AM nate 11/11/2024 11:39 AM 0.55 240 3 8 90L https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/Datasheet-1457.pdf
6 nate 11/11/2024 11:39 AM nate 11/11/2024 11:39 AM 0.55 415 3 8 90L https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/Datasheet-1480.pdf
7 nate 11/11/2024 11:39 AM nate 11/11/2024 11:39 AM 0.75 240 3 2 80 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/Datasheet-1458.pdf
8 nate 11/11/2024 11:39 AM nate 11/11/2024 11:39 AM 0.75 415 3 2 80 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/Datasheet-1481.pdf
9 nate 11/11/2024 11:39 AM nate 11/11/2024 11:39 AM 0.75 240 3 4 80 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/Datasheet-1459.pdf
10 nate 11/11/2024 11:39 AM nate 11/11/2024 11:39 AM 0.75 415 3 4 80 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/Datasheet-1482.pdf
KW Rating Voltage Phases No of Poles Frame

Features
  • Metric frame motor to AS1359, IEC60034 frame allocation (some motors also to AS/BS frame allocations)
  • 0.55kW to 500kW
  • Totally Enclosed Fan Cooled (IC411)
  • Meets IEC60034-30-1 (IE3) Efficiency
  • 380~415 Volts 3 Phase 50 Hz (other supplies on request)
  • Class H insulation with a Class B temperature rise
  • Continuous rated, duty type S1
  • Cast Iron construction with top mounted terminal box
  • IP66 protection rating standard
  • Finish colour Blue Jade T24 to AS2700
  • Mounting available – Foot, Foot and flange (C* and D types), Flange (C* and D types)
  • (C type flange on frame sizes D80-D132 only)
  • Wide range of options available
  • 2 year warranty

Benefits
  • Operates with high energy efficiency, promoting cost savings and reduced environmental impact
  • Versatile Power Range providing flexibility to meet different application requirements
  • Reliable and Durable Construction ensures the motor’s long-term reliability and ability to withstand demanding operating conditions
  • IP 66 Protection rating against dust and water ingress, making it suitable for harsh environments
  • Flexible Mounting Options allowing for easy and adaptable installation in different setups

Brochures

Manuals

Software

No software downloads.

Drawings

TECO Te3 Severe Duty Cast Iron 3 Phase Drawings

wdt_ID wdt_created_by wdt_created_at wdt_last_edited_by wdt_last_edited_at Frame Size PDF Drawings CAD Drawings 3D Drawings
1 nate 11/11/2024 04:21 PM nate 19/11/2024 04:01 PM 80 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-1485.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-1485.zip Available Upon Request
2 nate 11/11/2024 04:21 PM nate 19/11/2024 04:01 PM 90L https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-1493.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-1493.zip Available Upon Request
3 nate 11/11/2024 04:21 PM nate 19/11/2024 04:01 PM 90S https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-1489.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-1489.zip Available Upon Request
4 nate 11/11/2024 04:21 PM nate 19/11/2024 04:01 PM 100L https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-1498.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-1498.zip Available Upon Request
5 nate 11/11/2024 04:21 PM nate 19/11/2024 04:02 PM 112M https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-1502.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-1502.zip Available Upon Request
6 nate 11/11/2024 04:21 PM nate 19/11/2024 04:02 PM 132M https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-1513.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-1513.zip Available Upon Request
7 nate 11/11/2024 04:21 PM nate 19/11/2024 04:02 PM 132S https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-1509.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-1509.zip Available Upon Request
8 nate 11/11/2024 04:21 PM nate 19/11/2024 04:02 PM 160L https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-1522.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-1522.zip Available Upon Request
9 nate 11/11/2024 04:21 PM nate 19/11/2024 04:02 PM 160M https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-1518.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-1518.zip Available Upon Request
10 nate 11/11/2024 04:21 PM nate 19/11/2024 04:03 PM 180L https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-1527.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-1527.zip Available Upon Request
Frame Size

Data Sheet

TECO Te3 Severe Duty Cast Iron 3 Phase Datasheets

wdt_ID wdt_created_by wdt_created_at wdt_last_edited_by wdt_last_edited_at KW Rating Voltage Phases No of Poles Frame Datasheet PDF
1 nate 11/11/2024 11:39 AM nate 11/11/2024 11:39 AM 0.55 240 3 4 80 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/Datasheet-1455.pdf
2 nate 11/11/2024 11:39 AM nate 11/11/2024 11:39 AM 0.55 415 3 4 80 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/Datasheet-1478.pdf
3 nate 11/11/2024 11:39 AM nate 11/11/2024 11:39 AM 0.55 240 3 6 80 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/Datasheet-1456.pdf
4 nate 11/11/2024 11:39 AM nate 11/11/2024 11:39 AM 0.55 415 3 6 80 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/Datasheet-1479.pdf
5 nate 11/11/2024 11:39 AM nate 11/11/2024 11:39 AM 0.55 240 3 8 90L https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/Datasheet-1457.pdf
6 nate 11/11/2024 11:39 AM nate 11/11/2024 11:39 AM 0.55 415 3 8 90L https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/Datasheet-1480.pdf
7 nate 11/11/2024 11:39 AM nate 11/11/2024 11:39 AM 0.75 240 3 2 80 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/Datasheet-1458.pdf
8 nate 11/11/2024 11:39 AM nate 11/11/2024 11:39 AM 0.75 415 3 2 80 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/Datasheet-1481.pdf
9 nate 11/11/2024 11:39 AM nate 11/11/2024 11:39 AM 0.75 240 3 4 80 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/Datasheet-1459.pdf
10 nate 11/11/2024 11:39 AM nate 11/11/2024 11:39 AM 0.75 415 3 4 80 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/Datasheet-1482.pdf
KW Rating Voltage Phases No of Poles Frame
