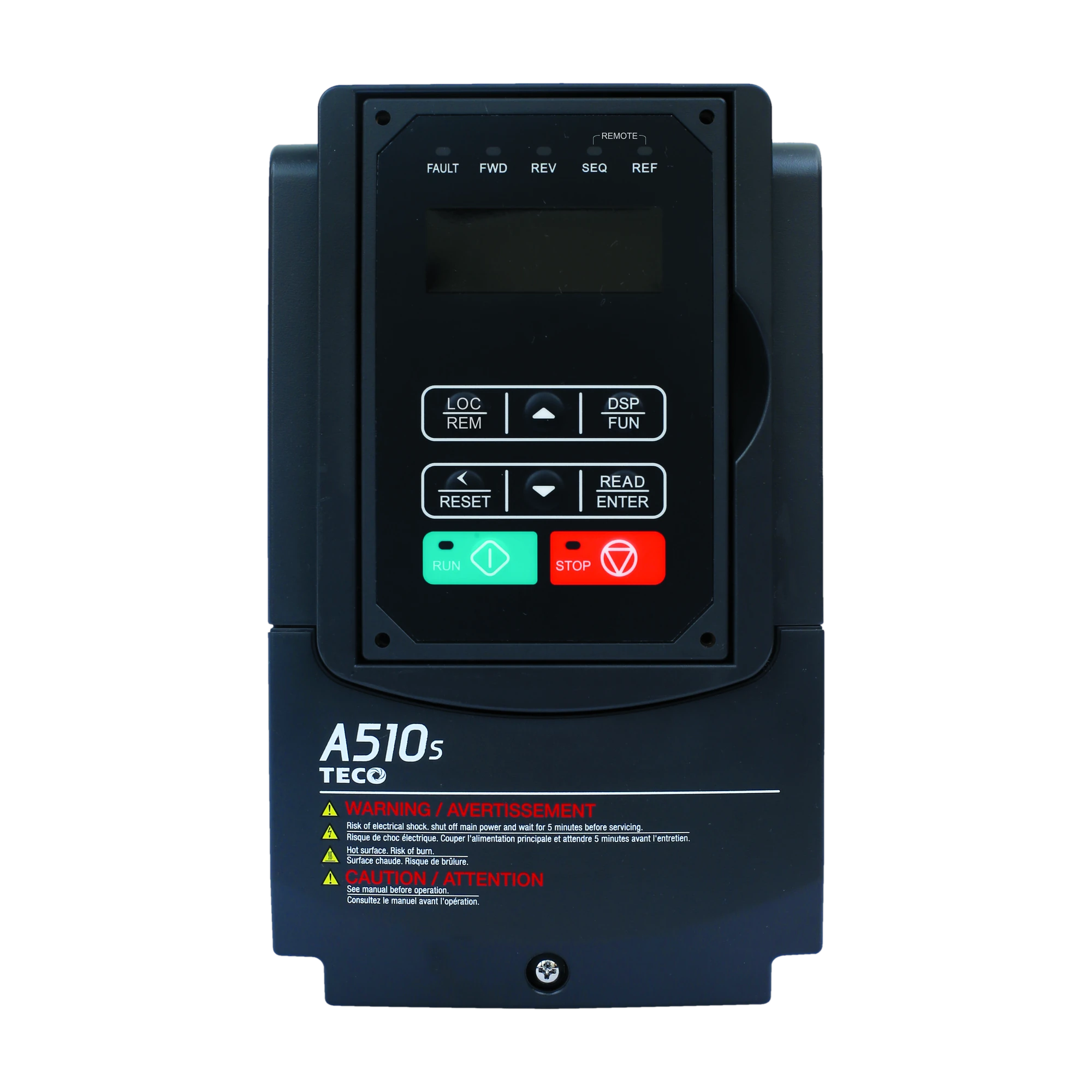

Advanced Current Vector Control A510s
Advanced Current Vector Control A510s
Advanced Current Vector Control A510s
Advanced Current Vector Control A510s
Advanced Current Vector Control A510s

Advanced Current Vector Control A510s

The Advanced Current Vector Control (A510s) series delivers high-performance motor control for a range of demanding industrial applications. Available in IP20 and IP00 configurations, the A510s range is designed to suit everything from standalone installations to custom-built integrations.

Powered by a dual-core processor featuring a 32-bit MCU (Microcontroller Unit) and ASIC (Application-Specific Integrated Circuit), the A510s provides advanced current vector control with highly accurate control of speed, torque, and position management.

The IP00 version features an open-frame design suited for installations requiring custom-built enclosures or integrated circuits, providing engineers with greater flexibility to optimise cooling and layout configurations. Alternatively, the IP20 version is suitable for general industrial applications with a built-in filter up to 45kW, promising better performance whilst minimising electrical interference.

Supporting four-quadrant control with an unmatched starting torque of 200% at 0.5Hz, the drive is ideal for use within heavy-duty applications. Built-in Modbus RTU communication via RJ45 enables seamless integration with existing automation and control systems.

Available Configurations:

  • A510s 690V IP00
  • A510s 690V IP20
  • A510s 400V IP00
  • A510s 400V IP20
Download Brochure
CONTACT US

Features

Brochures

Manuals

Software

Drawings & Data Sheets
  • Six control modes for versatile motor control performance
  • Dual-core processor with 32-bit MCU and ASIC for high-speed processing and reliable operation
  • 200% starting torque at 0.5Hz for heavy-duty applications
  • Four-quadrant control with speed, torque, and position control modes
  • Built-in Modbus RTU via RJ45 port
  • PTC thermistor input for enhanced motor protection
  • Dual rating for normal-duty and heavy-duty loads
  • PLC and PID functionality as standard for improved automation
  • Parameter lock function to prevent unauthorised access
  • User-friendly LCD keypad for simple setup and monitoring
  • Fire override mode for emergency operation capability
  • Built-in EMC filter up to 45kW, with an optional external filter available for larger units
  • Open-frame design for flexible integration into custom enclosures (IP00 configuration-specific)
wdt_ID wdt_created_by wdt_created_at wdt_last_edited_by wdt_last_edited_at Constant Torque (kW/A) Variable Torque (kW/A) Supply IP Rating kW Rating Datasheet PDF Drawing PDF Download All
1 mojodojo 02/06/2026 06:22 AM mojodojo 02/06/2026 06:22 AM 0.75 / 3.4 1.5 / 4.1 380-480V 3PH 20 0.75 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2025/03/DataSheet_of_A510-4001-SG3F-IP20-Enhanced.pdf https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/datasheet-135.pdf
2 mojodojo 02/06/2026 06:22 AM mojodojo 02/06/2026 06:22 AM 1.5 / 4.2 2.2 / 5.4 380-480V 3PH 20 1.50 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2025/03/DataSheet_of_A510-4002-SG3F-IP20-Enhanced.pdf https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/datasheet-136.pdf
3 mojodojo 02/06/2026 06:22 AM mojodojo 02/06/2026 06:22 AM 2.2 / 5.5 3.7 / 6.9 380-480V 3PH 20 2.20 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2025/03/DataSheet_of_A510-4003-SG3F-IP20-Enhanced.pdf https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/datasheet-137.pdf
4 mojodojo 02/06/2026 06:22 AM mojodojo 02/06/2026 06:22 AM 3.7 / 9.2 5.5 / 12.1 380-480V 3PH 20 3.70 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2025/03/DataSheet_of_A510-4005-SG3F-IP20-Enhanced.pdf https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/datasheet-138.pdf
5 mojodojo 02/06/2026 06:22 AM mojodojo 02/06/2026 06:22 AM 5.5 / 14.8 7.5 / 17.5 380-480V 3PH 20 5.50 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2025/03/DataSheet_of_A510-4008-SG3F-IP20-Enhanced.pdf https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/datasheet-139.pdf
6 mojodojo 02/06/2026 06:22 AM mojodojo 02/06/2026 06:22 AM 7.5 / 18 11 / 23 380-480V 3PH 20 7.50 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2025/03/DataSheet_of_A510-4010-SG3F-IP20-Enhanced.pdf https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/datasheet-140.pdf
7 mojodojo 02/06/2026 06:22 AM mojodojo 02/06/2026 06:22 AM 11.0 / 24 15 / 31 380-480V 3PH 20 11.00 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2025/03/DataSheet_of_A510-4015-SG3F-IP20-Enhanced.pdf https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/datasheet-141.pdf
8 mojodojo 02/06/2026 06:22 AM mojodojo 02/06/2026 06:22 AM 15 / 31 18.5 / 38 380-480V 3PH 20 15.00 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2025/03/DataSheet_of_A510-4020-SG3F-IP20-Enhanced.pdf https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/datasheet-142.pdf
9 mojodojo 02/06/2026 06:22 AM mojodojo 02/06/2026 06:22 AM 18.5 / 39 22 / 44 380-480V 3PH 20 18.50 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2025/03/DataSheet_of_A510-4025-SG3F-IP20-Enhanced.pdf https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/datasheet-143.pdf
10 mojodojo 02/06/2026 06:22 AM mojodojo 02/06/2026 06:22 AM 22 / 45 30 / 58 380-480V 3PH 20 22.00 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2025/03/DataSheet_of_A510-4030-SG3F-IP20-Enhanced.pdf https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/datasheet-144.pdf
Constant Torque (kW/A) Variable Torque (kW/A) Supply IP Rating kW Rating

Features
  • Six control modes for versatile motor control performance
  • Dual-core processor with 32-bit MCU and ASIC for high-speed processing and reliable operation
  • 200% starting torque at 0.5Hz for heavy-duty applications
  • Four-quadrant control with speed, torque, and position control modes
  • Built-in Modbus RTU via RJ45 port
  • PTC thermistor input for enhanced motor protection
  • Dual rating for normal-duty and heavy-duty loads
  • PLC and PID functionality as standard for improved automation
  • Parameter lock function to prevent unauthorised access
  • User-friendly LCD keypad for simple setup and monitoring
  • Fire override mode for emergency operation capability
  • Built-in EMC filter up to 45kW, with an optional external filter available for larger units
  • Open-frame design for flexible integration into custom enclosures (IP00 configuration-specific)

Brochures

Manuals

Software

Drawings & Data Sheets
wdt_ID wdt_created_by wdt_created_at wdt_last_edited_by wdt_last_edited_at Constant Torque (kW/A) Variable Torque (kW/A) Supply IP Rating kW Rating Datasheet PDF Drawing PDF Download All
1 mojodojo 02/06/2026 06:22 AM mojodojo 02/06/2026 06:22 AM 0.75 / 3.4 1.5 / 4.1 380-480V 3PH 20 0.75 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2025/03/DataSheet_of_A510-4001-SG3F-IP20-Enhanced.pdf https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/datasheet-135.pdf
2 mojodojo 02/06/2026 06:22 AM mojodojo 02/06/2026 06:22 AM 1.5 / 4.2 2.2 / 5.4 380-480V 3PH 20 1.50 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2025/03/DataSheet_of_A510-4002-SG3F-IP20-Enhanced.pdf https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/datasheet-136.pdf
3 mojodojo 02/06/2026 06:22 AM mojodojo 02/06/2026 06:22 AM 2.2 / 5.5 3.7 / 6.9 380-480V 3PH 20 2.20 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2025/03/DataSheet_of_A510-4003-SG3F-IP20-Enhanced.pdf https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/datasheet-137.pdf
4 mojodojo 02/06/2026 06:22 AM mojodojo 02/06/2026 06:22 AM 3.7 / 9.2 5.5 / 12.1 380-480V 3PH 20 3.70 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2025/03/DataSheet_of_A510-4005-SG3F-IP20-Enhanced.pdf https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/datasheet-138.pdf
5 mojodojo 02/06/2026 06:22 AM mojodojo 02/06/2026 06:22 AM 5.5 / 14.8 7.5 / 17.5 380-480V 3PH 20 5.50 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2025/03/DataSheet_of_A510-4008-SG3F-IP20-Enhanced.pdf https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/datasheet-139.pdf
6 mojodojo 02/06/2026 06:22 AM mojodojo 02/06/2026 06:22 AM 7.5 / 18 11 / 23 380-480V 3PH 20 7.50 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2025/03/DataSheet_of_A510-4010-SG3F-IP20-Enhanced.pdf https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/datasheet-140.pdf
7 mojodojo 02/06/2026 06:22 AM mojodojo 02/06/2026 06:22 AM 11.0 / 24 15 / 31 380-480V 3PH 20 11.00 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2025/03/DataSheet_of_A510-4015-SG3F-IP20-Enhanced.pdf https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/datasheet-141.pdf
8 mojodojo 02/06/2026 06:22 AM mojodojo 02/06/2026 06:22 AM 15 / 31 18.5 / 38 380-480V 3PH 20 15.00 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2025/03/DataSheet_of_A510-4020-SG3F-IP20-Enhanced.pdf https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/datasheet-142.pdf
9 mojodojo 02/06/2026 06:22 AM mojodojo 02/06/2026 06:22 AM 18.5 / 39 22 / 44 380-480V 3PH 20 18.50 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2025/03/DataSheet_of_A510-4025-SG3F-IP20-Enhanced.pdf https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/datasheet-143.pdf
10 mojodojo 02/06/2026 06:22 AM mojodojo 02/06/2026 06:22 AM 22 / 45 30 / 58 380-480V 3PH 20 22.00 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2025/03/DataSheet_of_A510-4030-SG3F-IP20-Enhanced.pdf https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/datasheet-144.pdf
Constant Torque (kW/A) Variable Torque (kW/A) Supply IP Rating kW Rating
