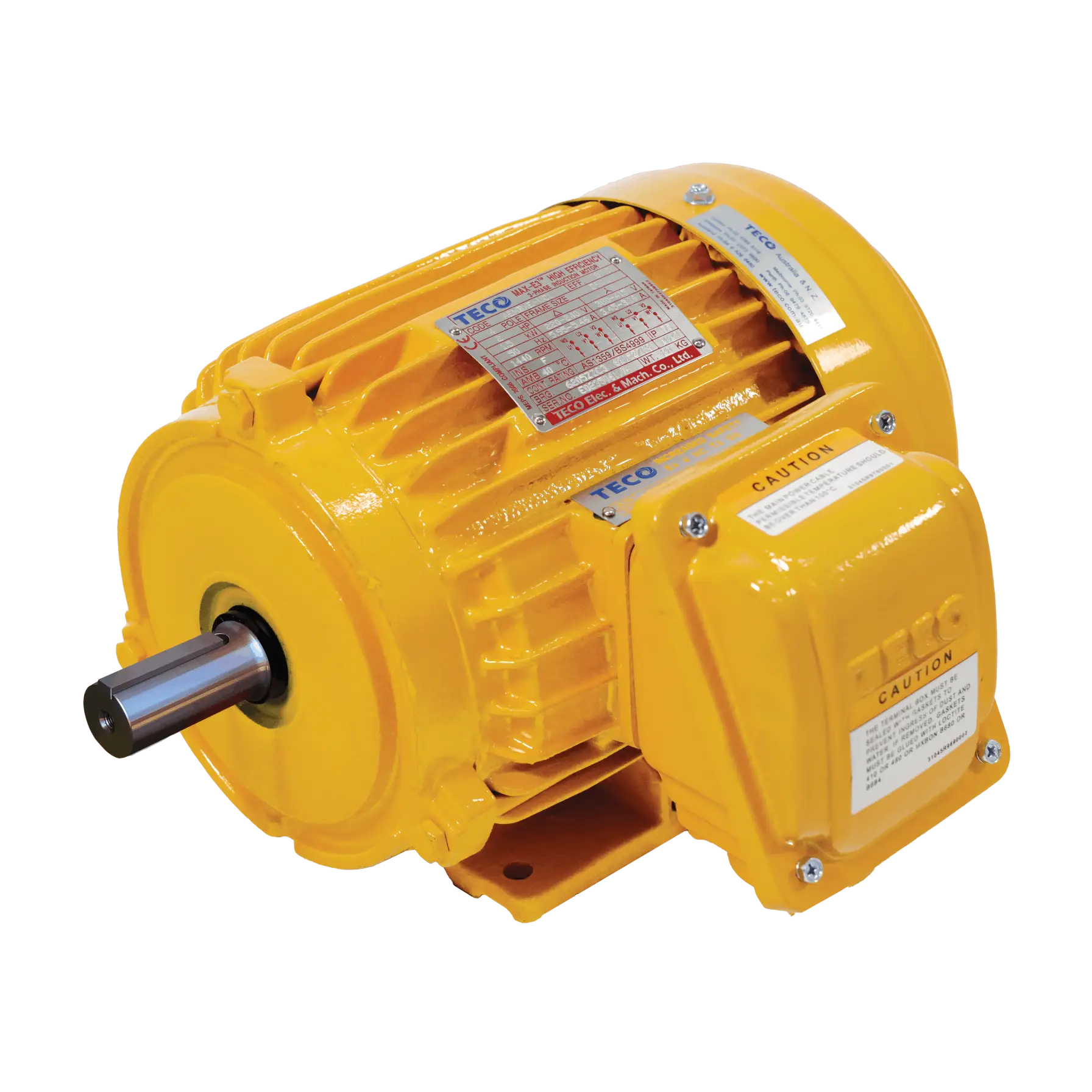

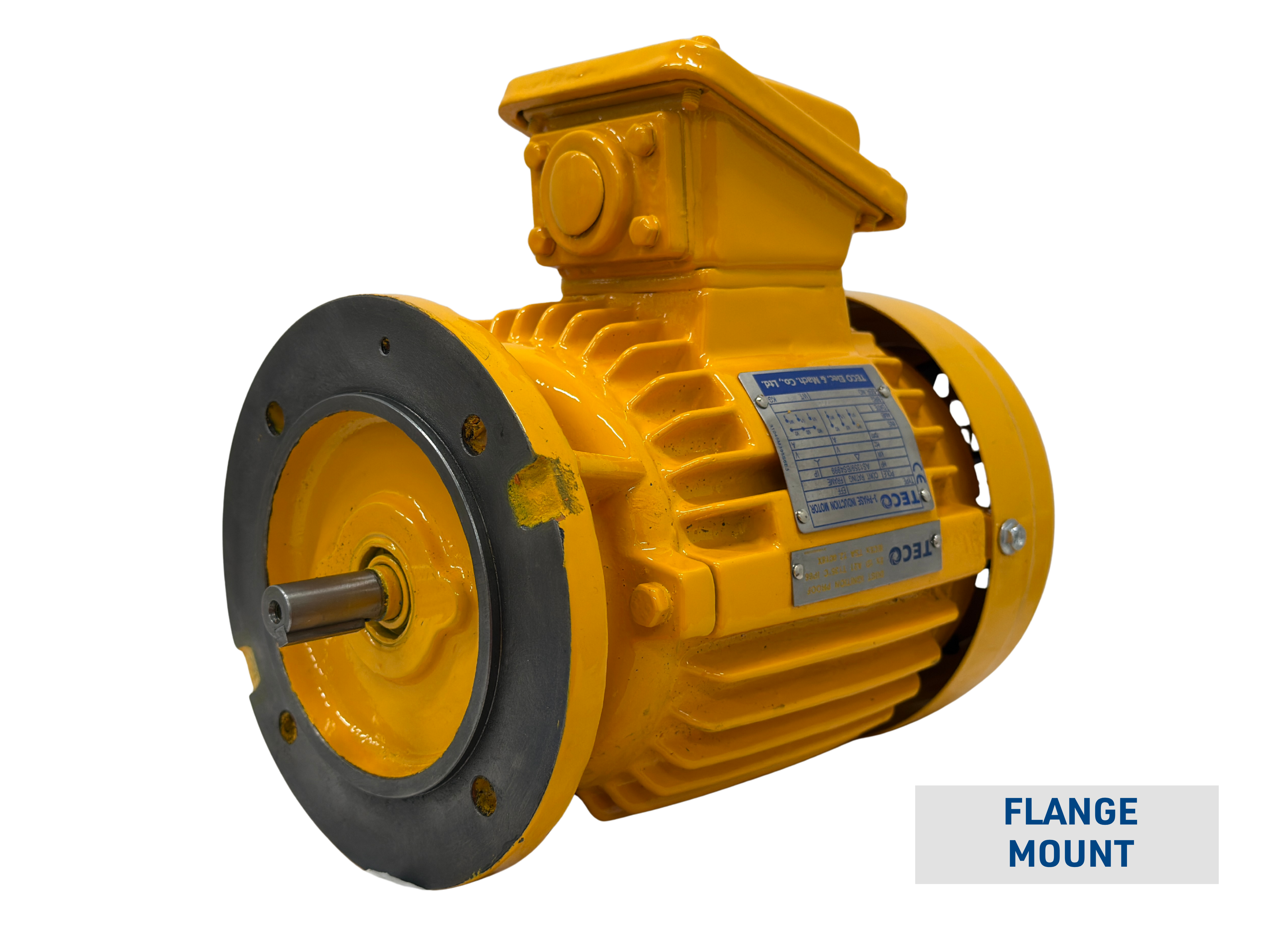

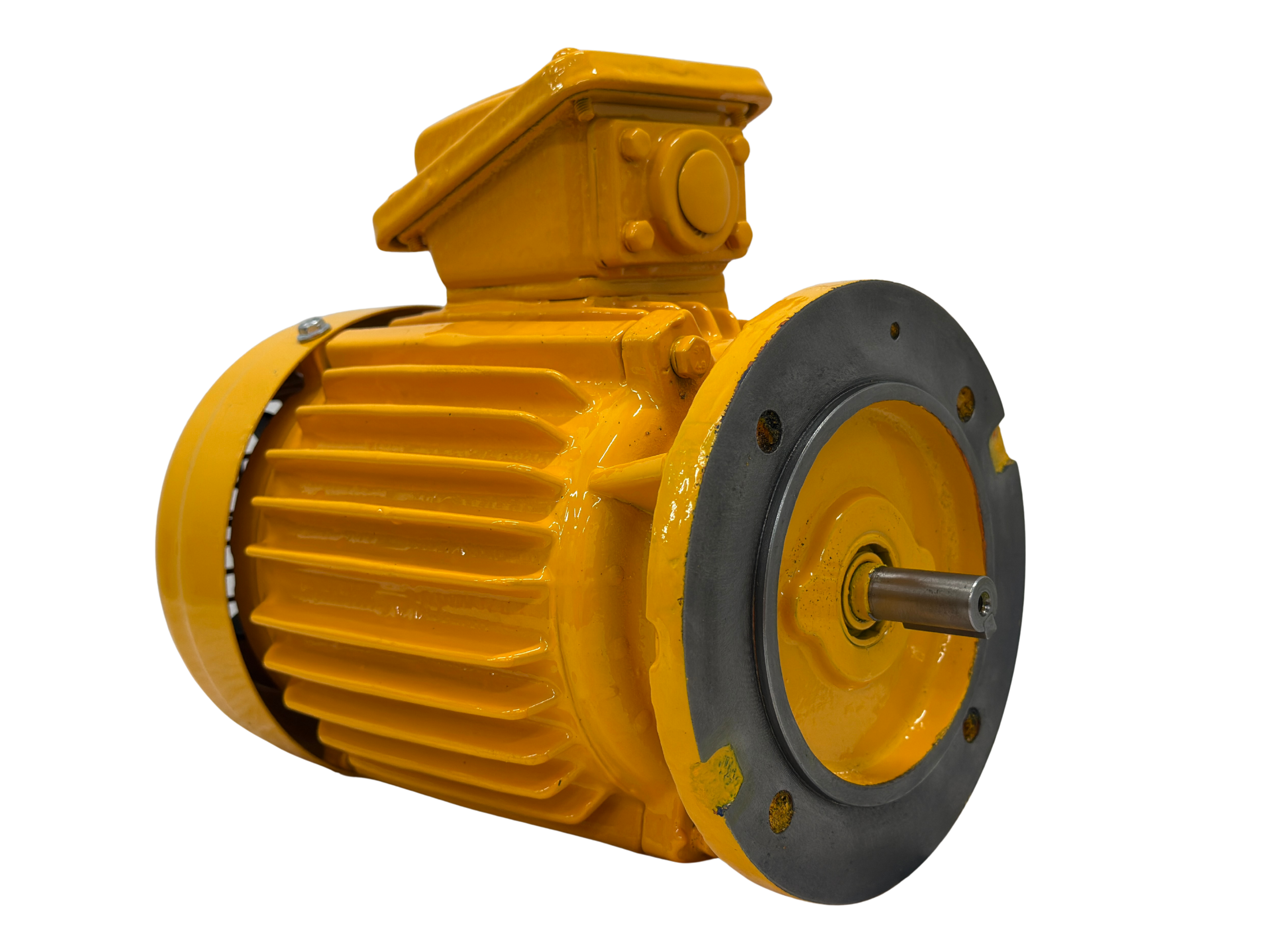

Engineered for Maximum Safety, Efficiency, and Versatility in Challenging Environments, IP66 Protection

TECO MAX Ex Electric Motors is designed for maximum safety and efficiency. These motors are IEC Ex Certified, boasting an array of certifications including Ex e (Increased Safety), Ex nA (Non-Sparking), and Ex tD (Dust Ignition Proof).

With a comprehensive range of certifications, including Zone 1/Zone 2, Gb, IIC, T3, and more, our motors are equipped to excel in challenging environments. These durable motors feature Metric frame designs adhering to IEC60034 and AS/BS frame allocation, catering to a wide range of industrial needs.

TECO MAX Ex Electric Motors are engineered for power, ranging from 0.18kW to 450kW (stock) or 560kW (Built to Order), providing the flexibility needed for various applications. Compliant with IEC standards, these motors deliver exceptional performance while meeting or exceeding IEC60034 Minimum Efficiency Performance Standards table B3 “High Efficiency.”
Operating at 380~415 Volts 3 Phase 50 Hz (with other supplies available on request), our motors utilise the highest quality insulation system, employing Class F (MAXe3 PSD) or Class H (MAXe3-Mining) materials. With a low temperature rise and low noise levels, these motors are built for continuous, S1-duty operation.

Furthermore, MAX Ex Electric Motors feature IP66 protection, cast iron construction with side-mounted terminal boxes, and offer versatile mounting options, including foot, foot and flange, and flange types (C* and D). For arduous belt drive applications, models with oversized shafts are available on select versions.

Rest assured of the durability of TECO MAX Ex Electric Motors, as they also include fabricated steel terminal boxes, and MAX Ex Brake Motors. To further enhance versatility, a wide range of accessories are available, backing up our 2-year warranty.

  • IEC Ex Certified with certification available as :
  • Ex e (Increased Safety) , Zone 1/Zone 2 , Gb , IIC , T3 , 40 deg C ambient , IEC60079.7:2006
  • Ex nA (Non Sparking) , Zone 2 , Gc , IIC , T3 , 55 deg C ambient , IEC60079.15:2006

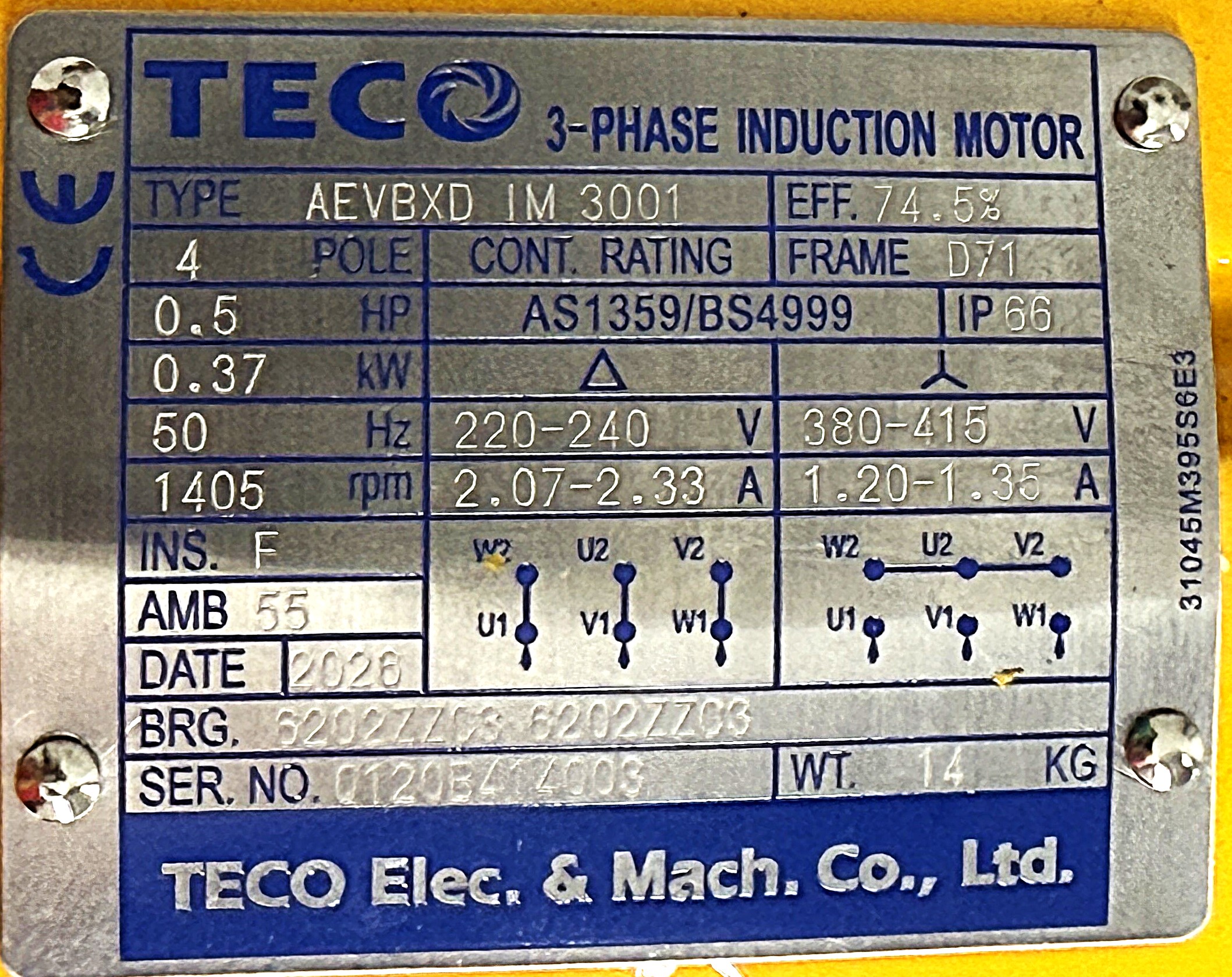

  • Ex tD (Dust Ignition Proof) , Zone A21/Zone A22 , IP66 , T135 deg C , 55 deg C ambient , IEC61241.1:2005
  • Metric frame motors to AS1359, AS/BS frame allocation
  • D71 to D355 frames
  • 0.18kW to 450kW(Stock) or 560kW(Built to Order)
  • Totally Enclosed Fan Cooled (IC411)
  • MAX-E3-PSD and MAX-E3-MINING motors type AEMB, meet or exceed AS1359.5 Minimum Efficiency Performance Standard, table B3 “High Efficiency”
  • 380~415 Volts 3 Phase 50 Hz (other supplies on request)
  • Highest quality insulation system utilizing *Class F (MAX-PSD) or Class H (MAX-E3-MINING) materials
  • Low temperature rise for substantial thermal reserve
  • Continuous rated, duty type S1
  • Low noise level
  • IP66 protection
  • Cast Iron construction with side mounted terminal box
  • Mountings available – Foot, Foot and flange (C* and D types), Flange (C* and D types)
  • (C type flange on frame sizes D63-D132 only)
  • 185kW 4 pole and larger also available with oversized shaft for arduous belt drive applications
  • Fabricated steel terminal box
  • MAX-Ex Brake Motors
  • Wide range of accessories available
  • 2 year warranty​
  • Ensuring a secure operational environment and compliance with industry safety regulations
  • Accommodating various industrial needs and applications, providing customers with flexibility and adaptability
  • Ensuring prolonged operational efficiency and reduced risk of overheating
  • Meeting or exceeding industry standards, resulting in reduced energy consumption and operational costs
  • Ensuring adaptability to varying operational conditions and environments
  • Maintain low temperature rise, ensuring optimal thermal performance and longevity
  • Contributing to a conducive working environment and reduced noise levels within industrial settings
  • Reducing maintenance requirements and ensuring longevity
  • Simplifying installation processes and ensuring compatibility with diverse installation requirements
  • Providing enhanced durability and longevity, even in challenging operational conditions.
