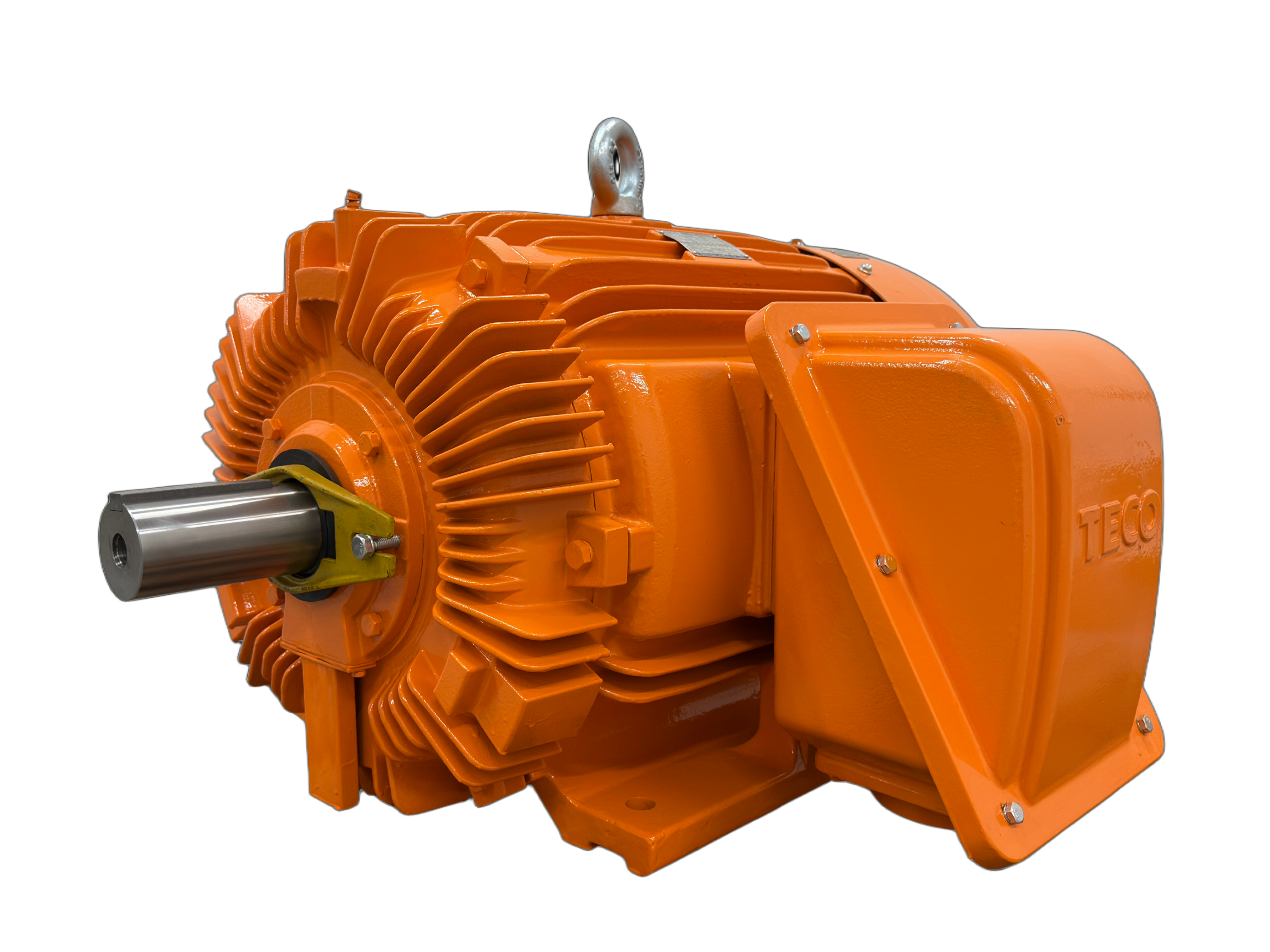

High Efficiency Electric Motors specifically designed to meet the rigorous demands of the Mining industry.

With True IP66 protection rating and Class H insulation system, TECO MAXe3 Mining Electric Motor is built to withstand harsh operating conditions.

Equipped with superior inverter-rated insulation with a dV/dT rating of 8500 V/microsecond for optimal performance, TECO MAXe3 is made with precision and rugged cast iron construction including fan, ensuring durability in mining environments. These motors have a typical temperature rise less then class E and can operate efficiently in 60°C ambient conditions at rated output. Our motors are mining specification compliant, making them ideal for mining applications. Additionally, they are IECEX Ex e, Ex nA, Ex tD ready to order, ensuring safety in hazardous environments. Stand out with our X15 Orange paint finish and choose from a range of mounting options. To ensure customer satisfaction, the motor comes with a 2-year warranty, providing support and coverage against manufacturing defects or performance issues.

Download Brochure
CONTACT US

Features

Benefits

Brochures

Manuals

Software

Drawings

Data Sheets
  • High Efficiency Motors
  • True IP66 with porous drain plugs
  • Class H insulation system
  • Superior inverter- rated insulation (8500V/microsecond)
  • Precision and rugged cast iron construction including fan
  • Typical temperature rise less than Class E
  • 1.2 service factor @ 40 deg C ambient
  • Suitable for 60 deg C ambient at rated output
  • TECO renowned grease relief system
  • Two sets of thermistors for frames D160 and larger
  • IECEX Ex e, Ex nA, Ex tD ready (to order)
  • TECO Mining specification
  • X15 Orange paint finish

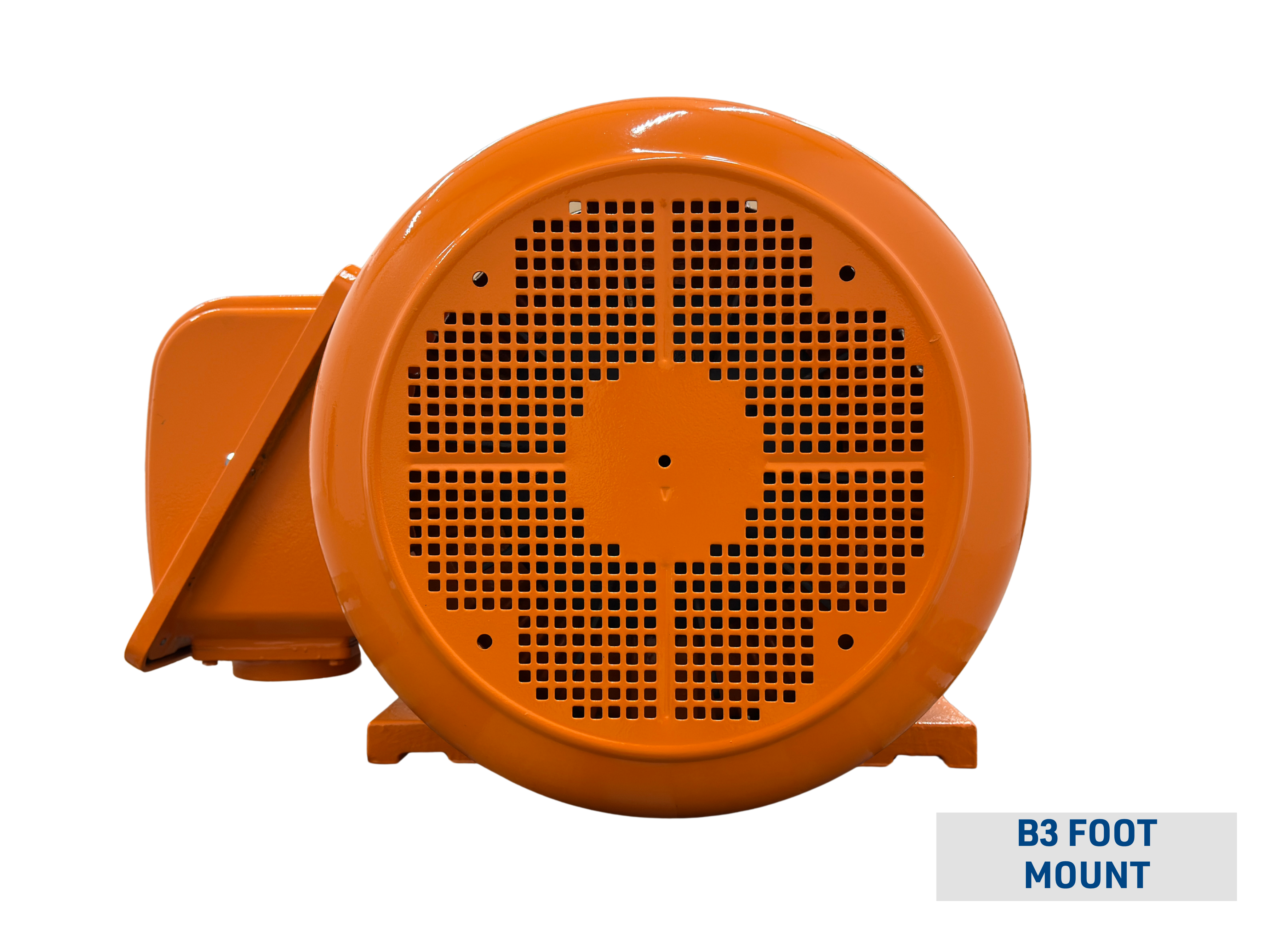

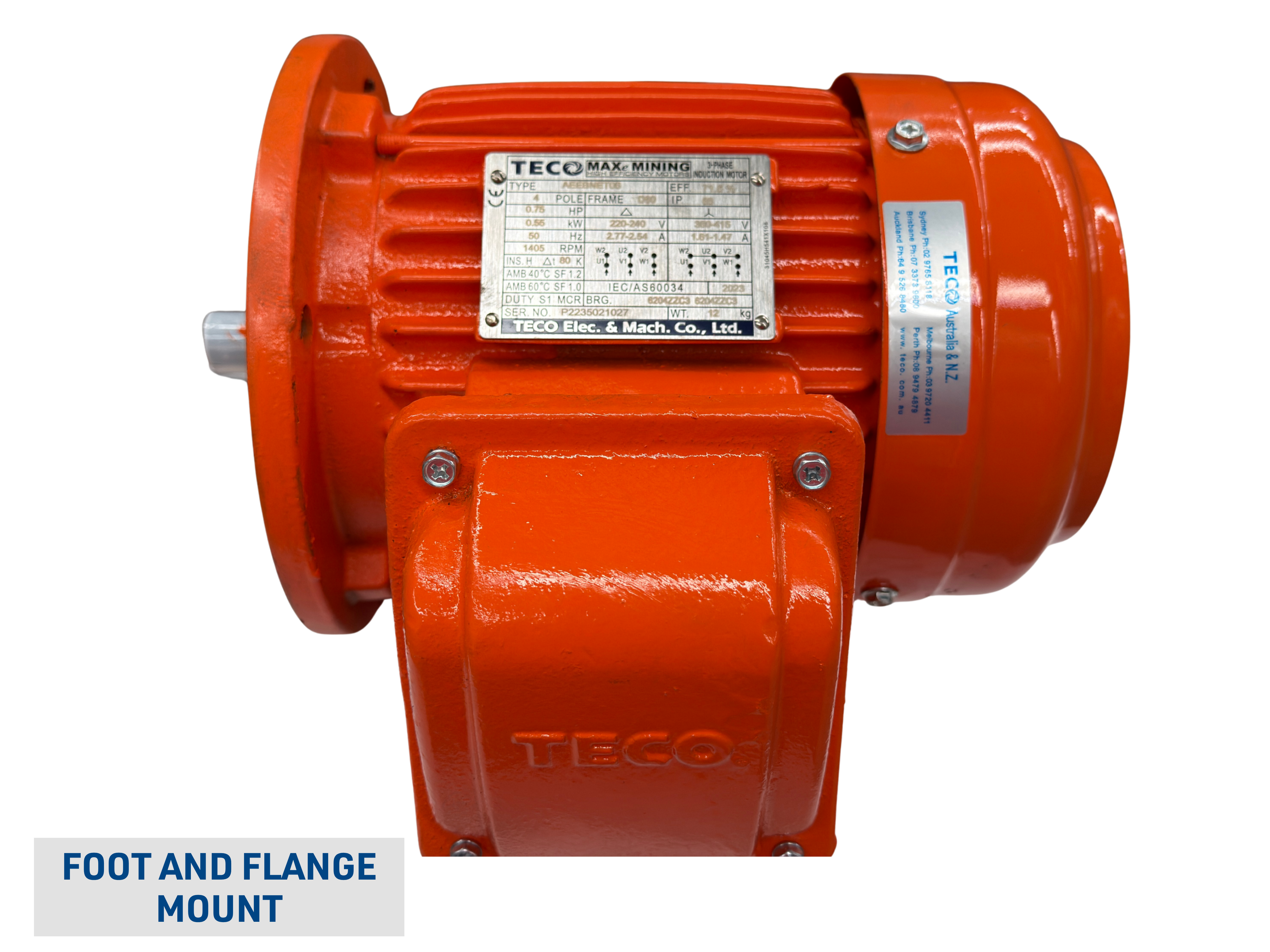

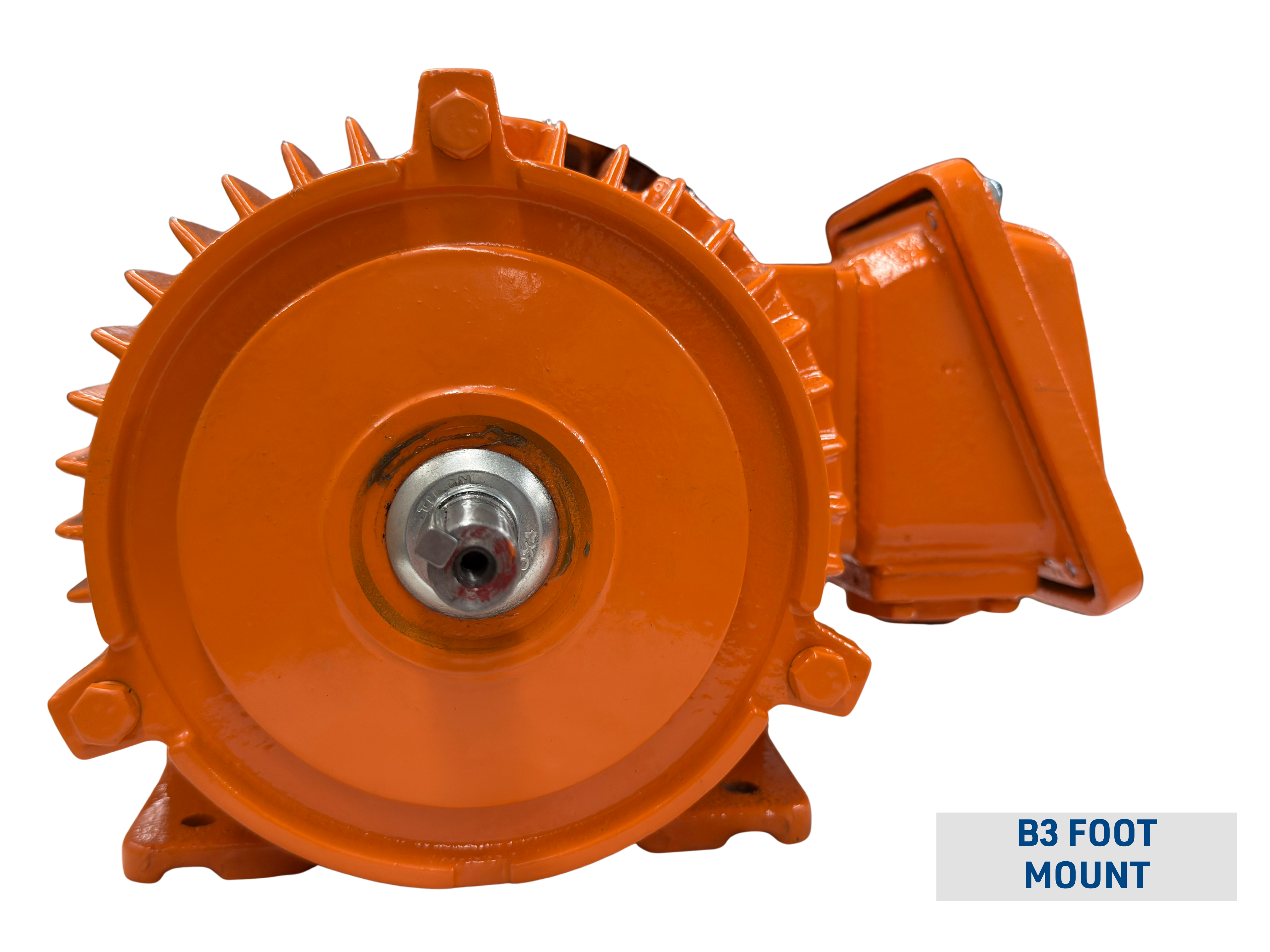

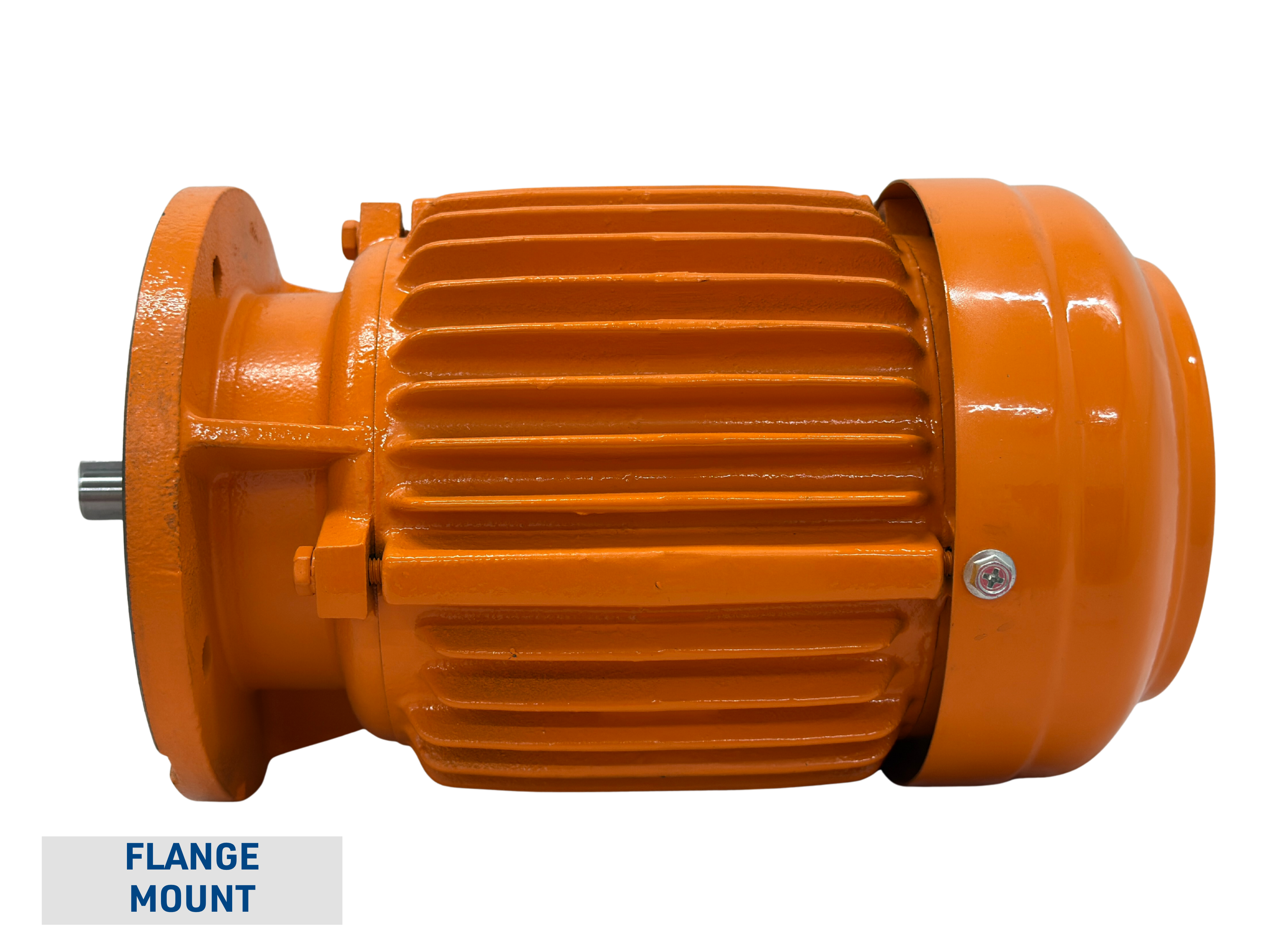

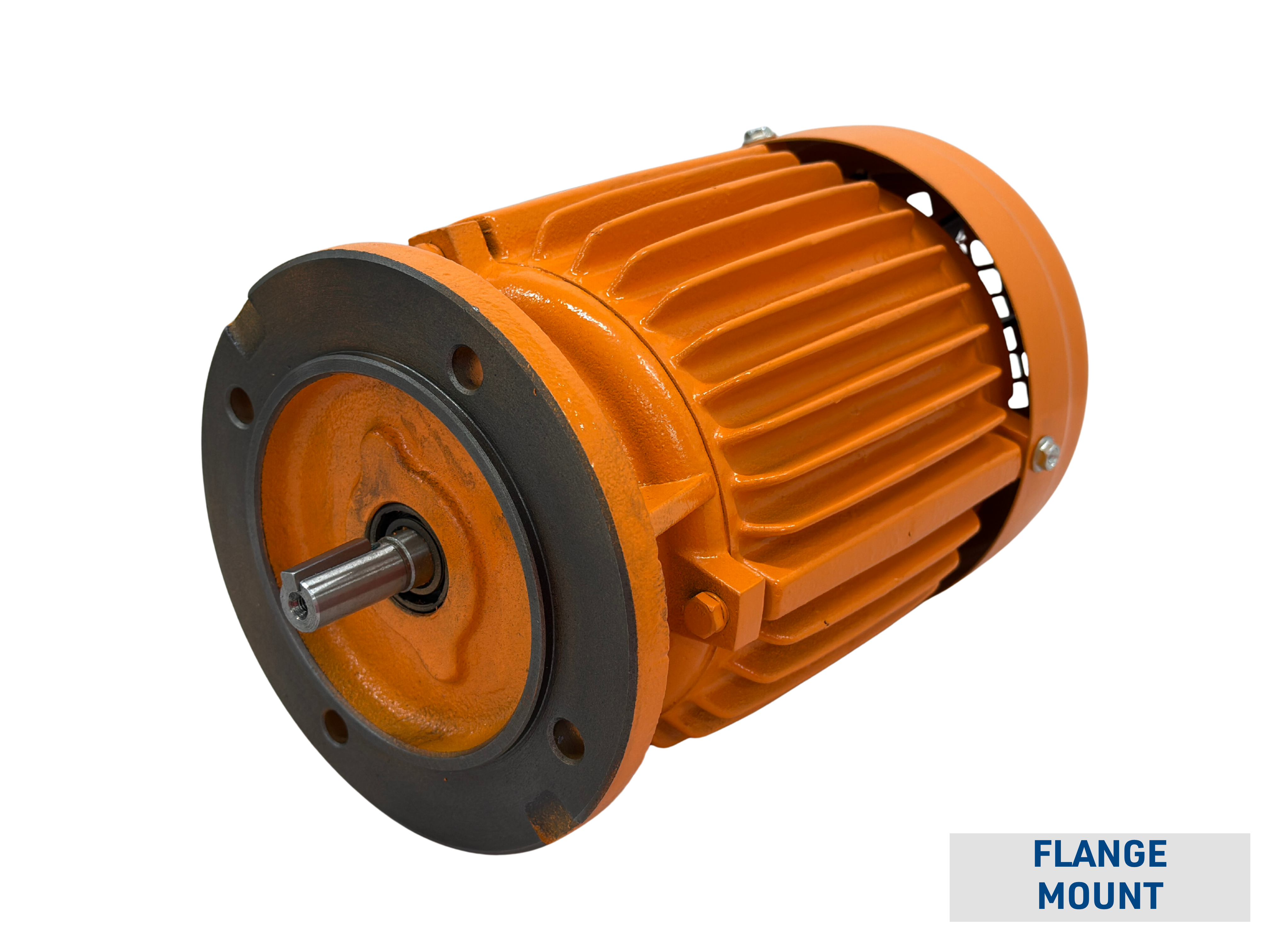

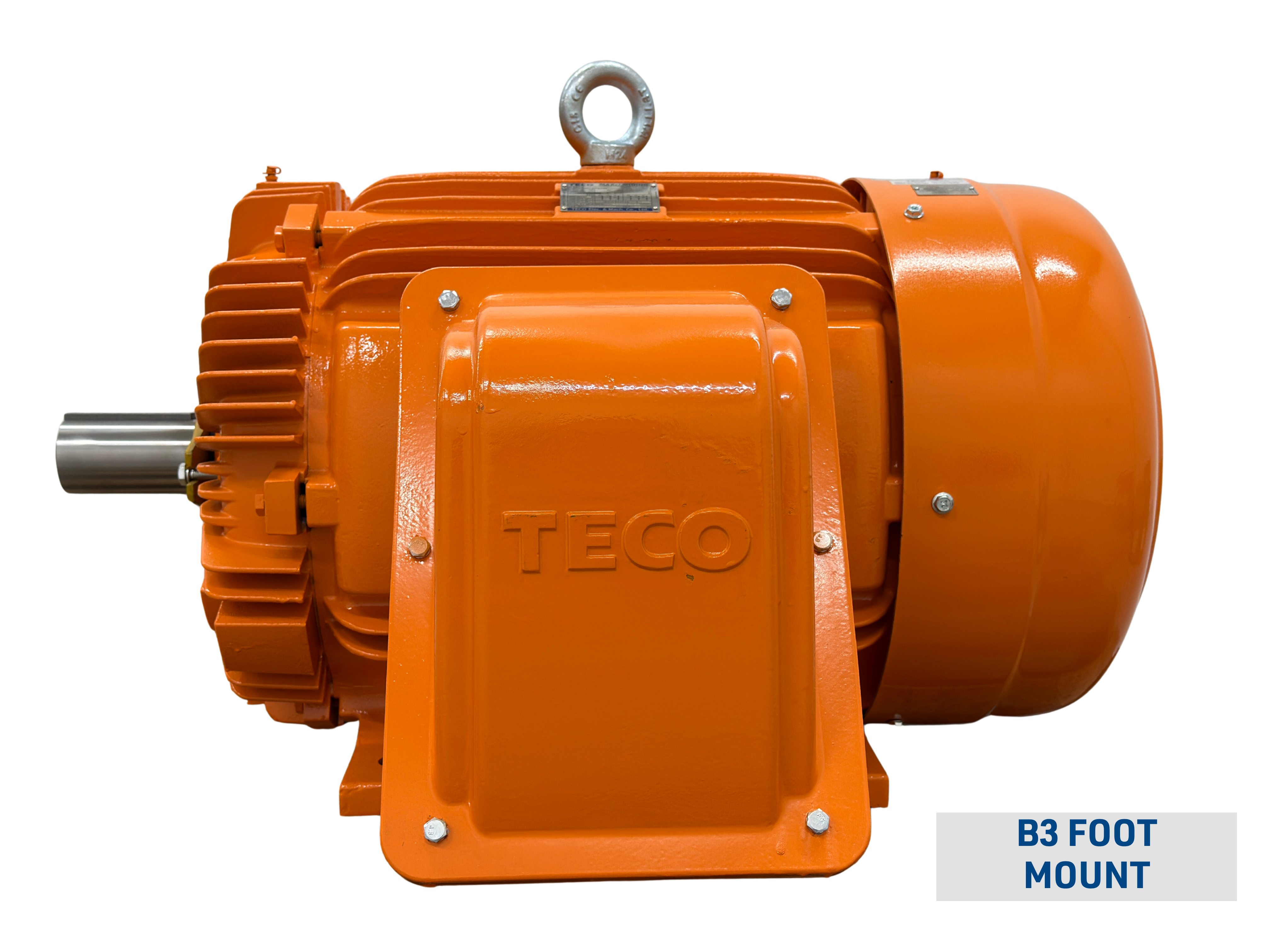

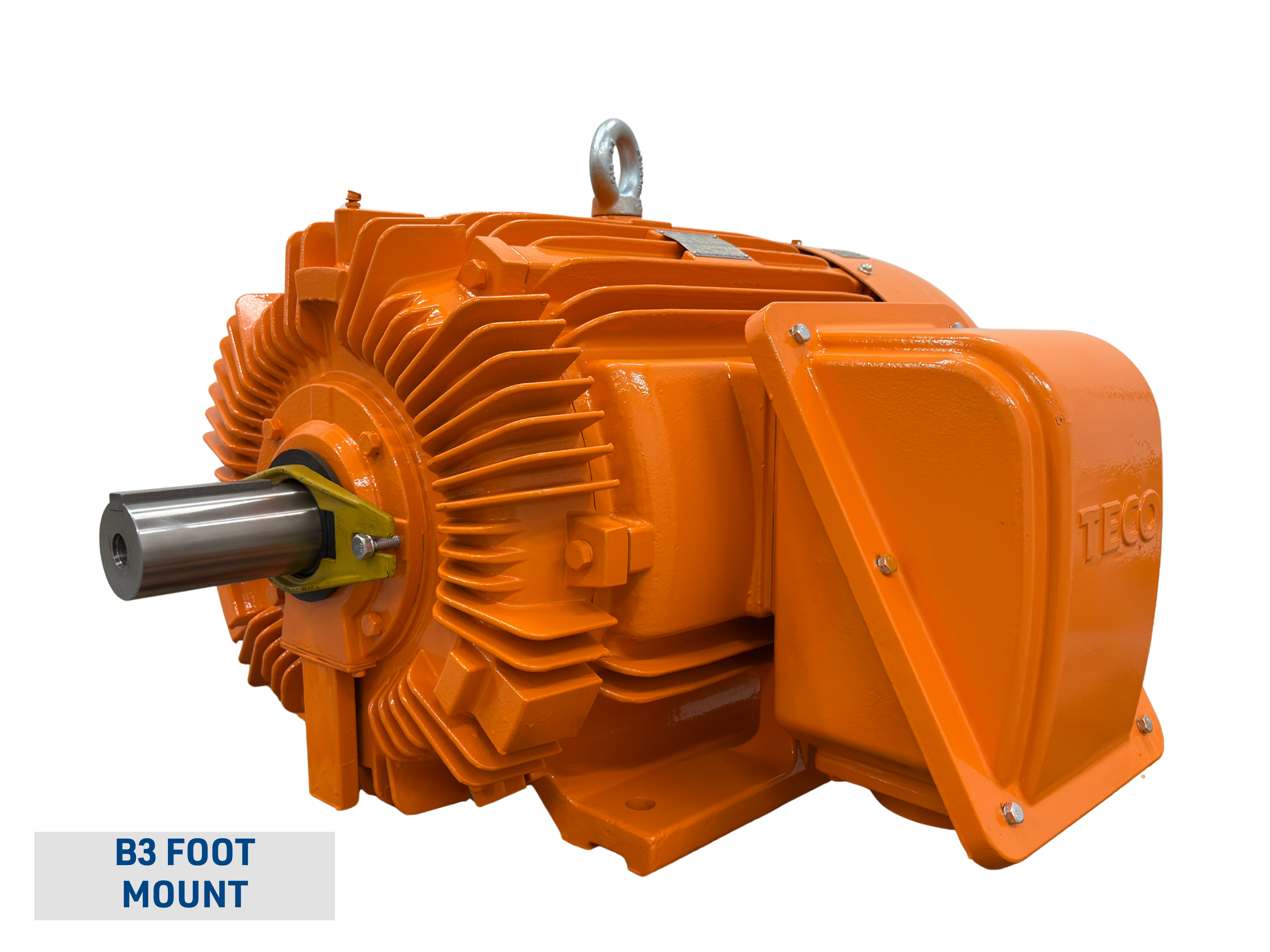

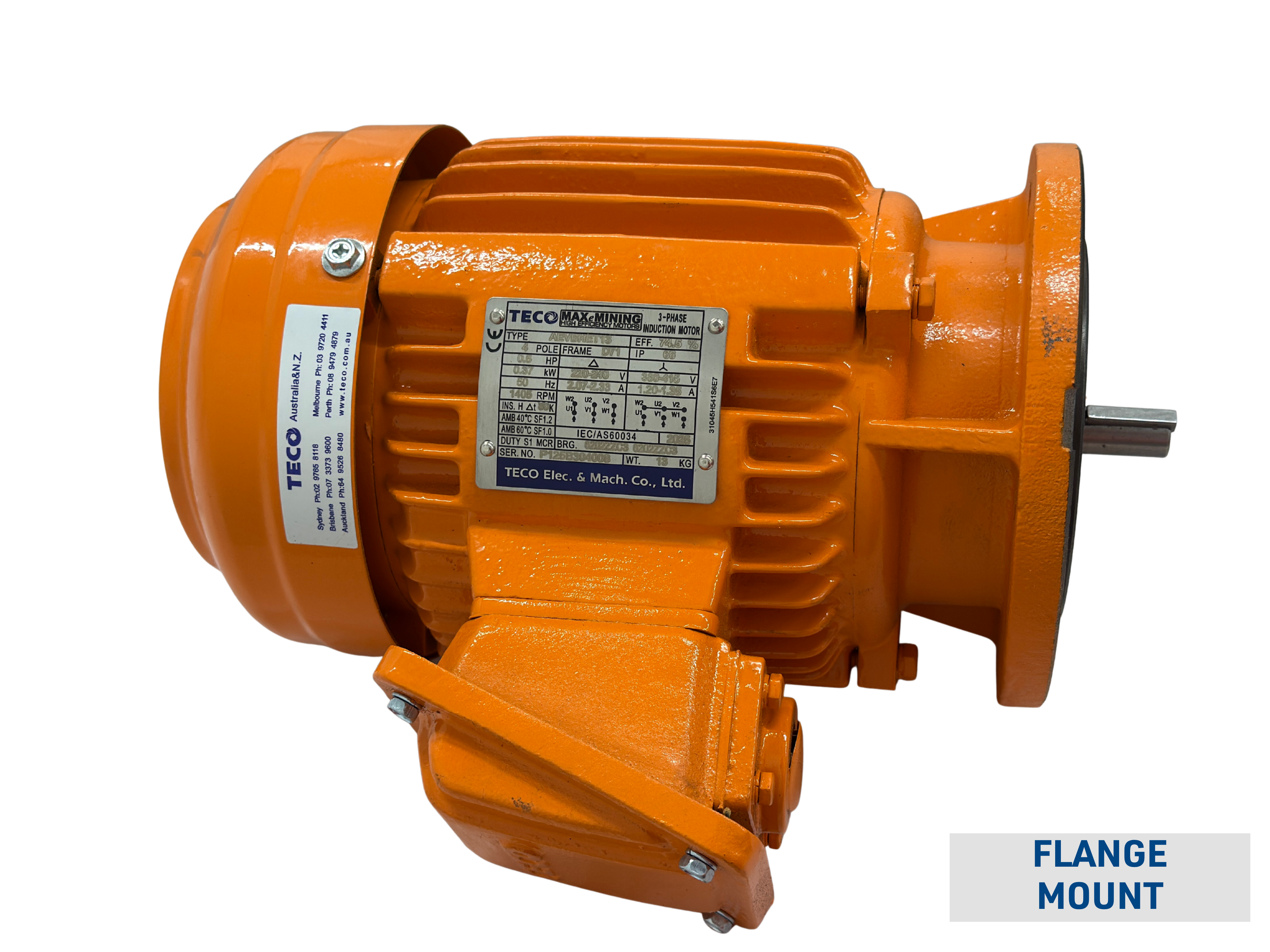

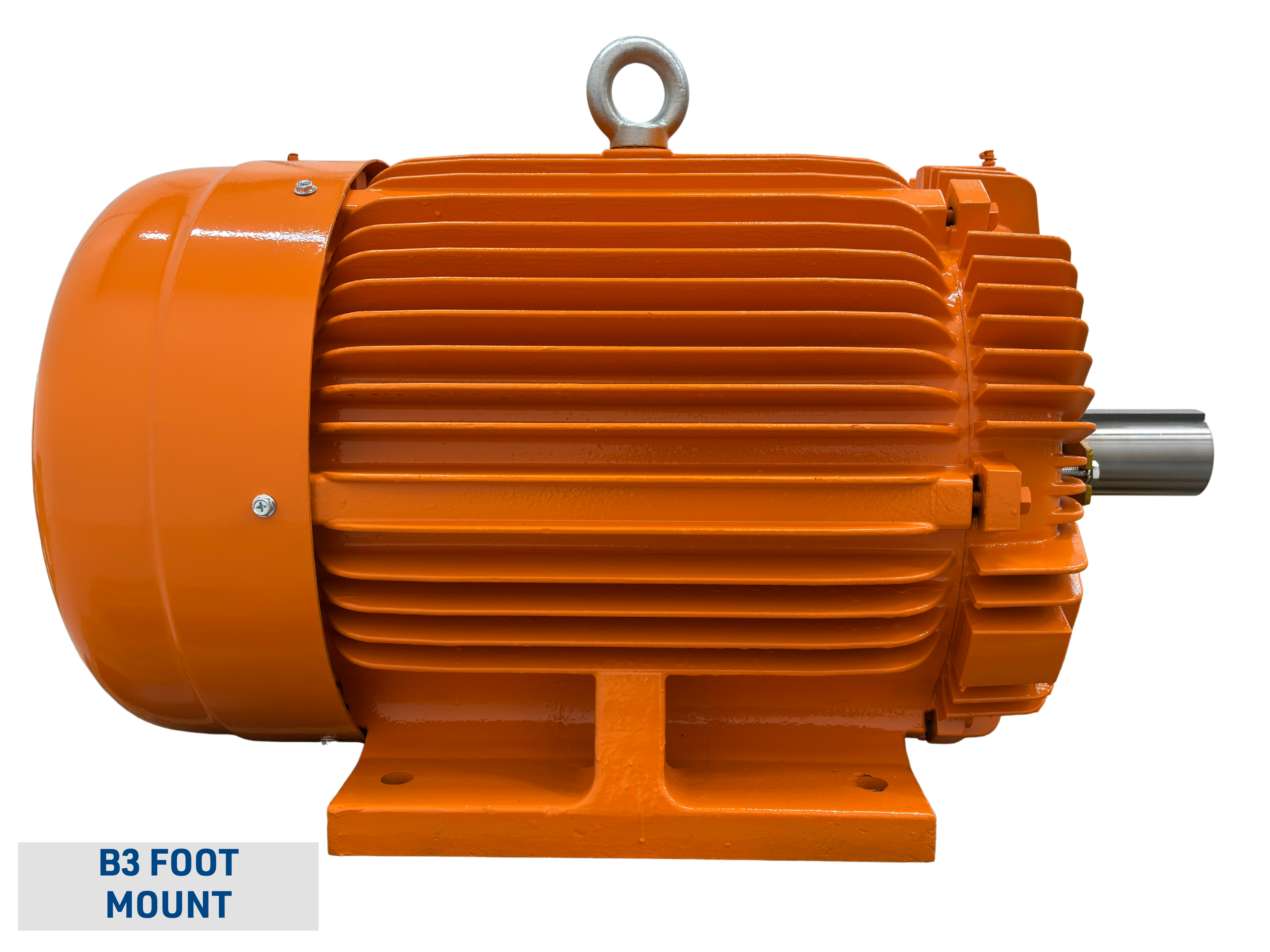

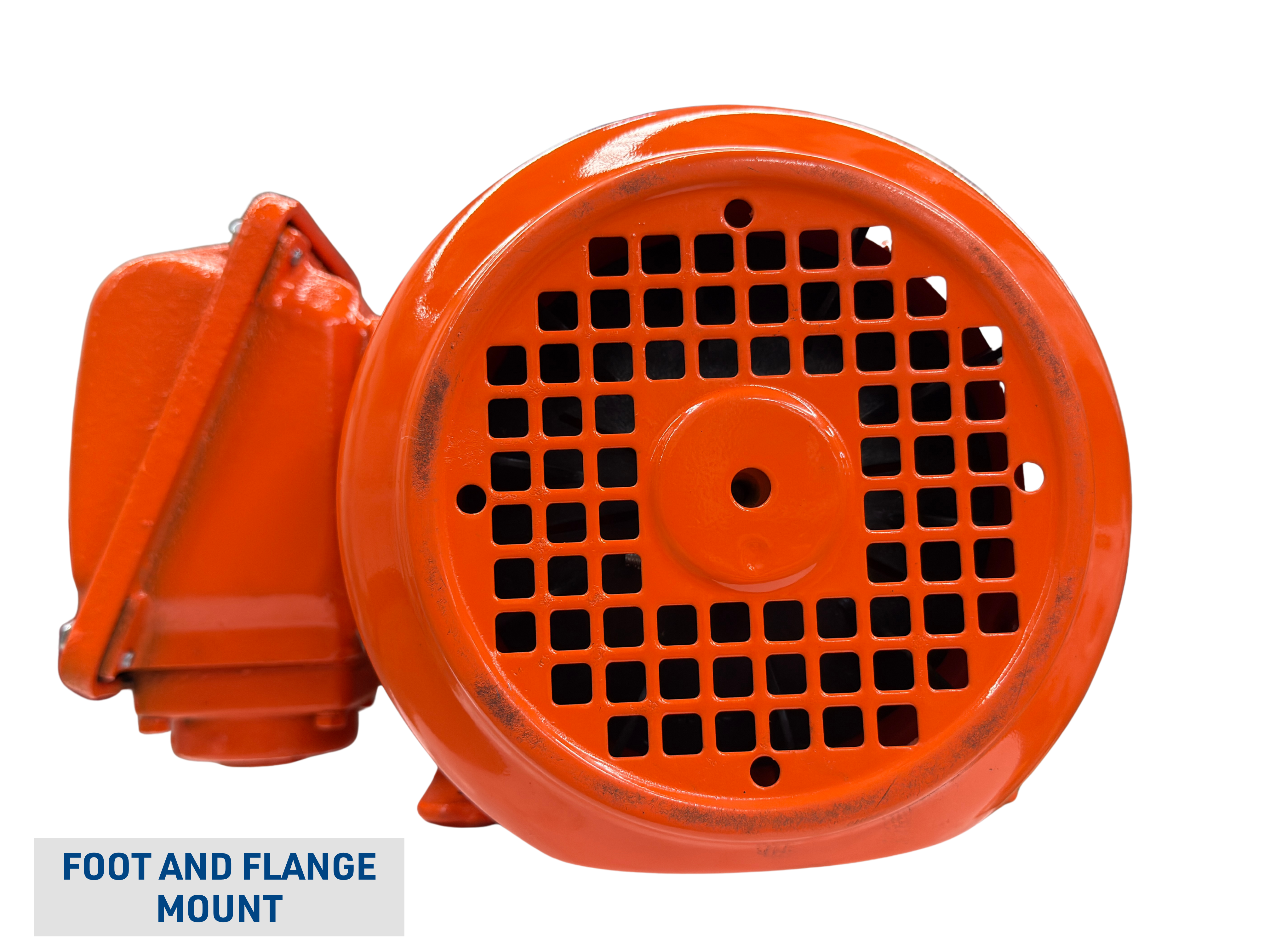

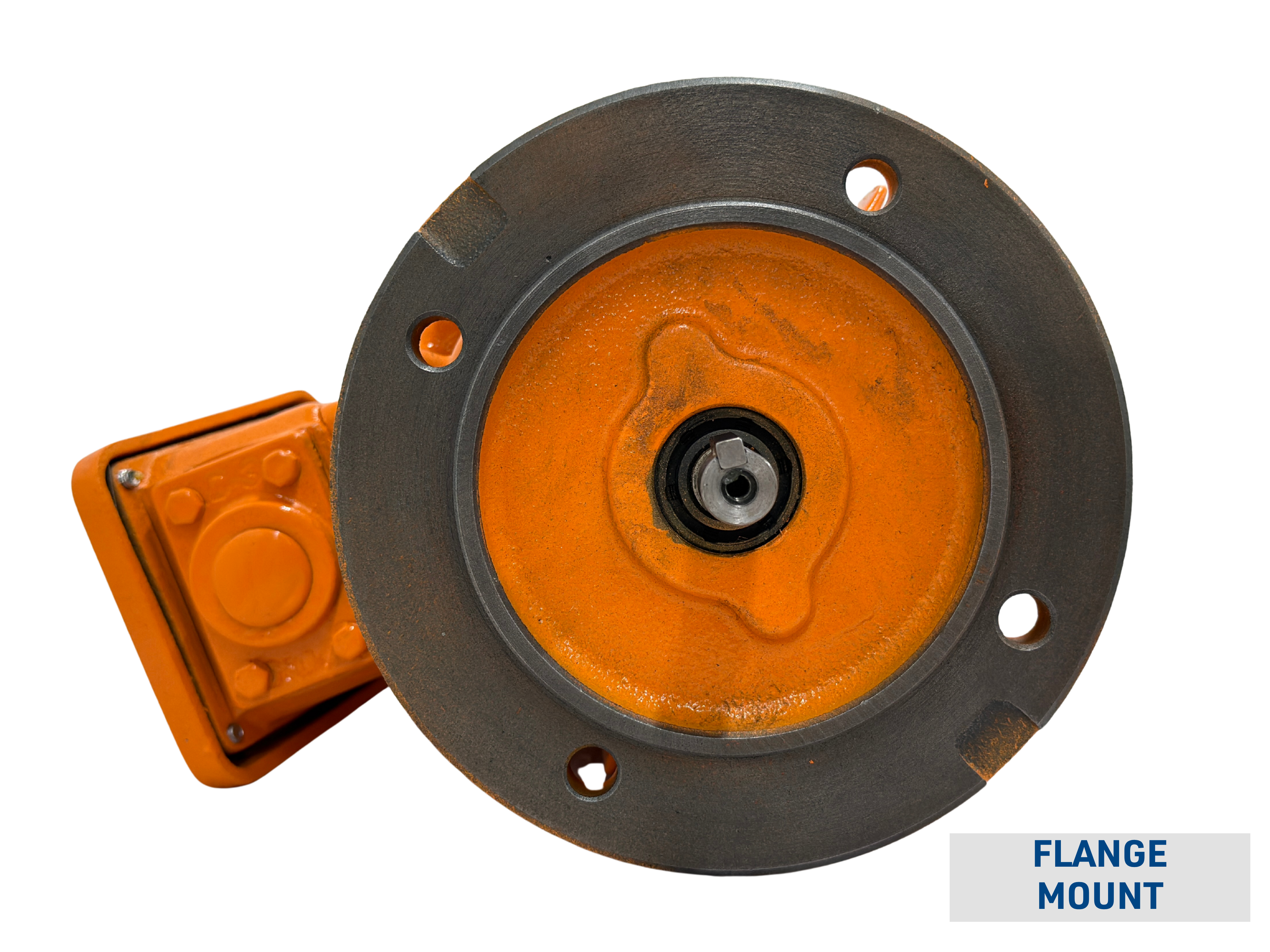

  • Mountings available -Foot, Foot and D Flange, D Flange
  • Foot and C Face (to 132 frame only)
  • C Face (to 132 frame only)
  • 2 year warranty
  • Enhanced protection against dust and water
  • High-quality insulation system ensures safe and efficient operation
  • TECO superior inverter duty insulation system
  • Robust cast iron construction guarantees durability and reliability
  • Lower temperature rises for improved performance
  • High service factor allows for reliable operation in demanding conditions
  • Suitable for use in high-temperature environments up to 60 deg C ambient
  • TECO’s grease relief system ensures optimal lubrication and extends motor life
  • Thermistors provide added protection for larger frames, enhancing motor safety
  • Compliance with IECEX Ex e, Ex nA and Ex td standards enables usage in hazardous environments
  • Versatile mounting options for easy installation and compatibility with different setups

No software downloads.

TECO MAXe3 MINING High Efficiency Drawings

wdt_ID wdt_created_by wdt_created_at wdt_last_edited_by wdt_last_edited_at Frame Size PDF Drawings CAD Drawings 3D Drawings
1 nate 11/11/2024 04:14 PM nate 11/11/2024 04:14 PM 63 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-38.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-38.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/3Ddrawings-38.zip
2 nate 11/11/2024 04:14 PM nate 11/11/2024 04:14 PM 71 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-45.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-45.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/3Ddrawings-45.zip
3 nate 11/11/2024 04:14 PM nate 11/11/2024 04:14 PM 80 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-53.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-53.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/3Ddrawings-53.zip
4 nate 11/11/2024 04:14 PM nate 11/11/2024 04:14 PM 90L https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-61.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-61.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/3Ddrawings-61.zip
5 nate 11/11/2024 04:14 PM nate 11/11/2024 04:14 PM 90S https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-57.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-57.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/3Ddrawings-57.zip
6 nate 11/11/2024 04:14 PM nate 11/11/2024 04:14 PM 100L https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-66.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-66.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/3Ddrawings-66.zip
7 nate 11/11/2024 04:14 PM nate 11/11/2024 04:14 PM 112M https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-70.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-70.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/3Ddrawings-70.zip
8 nate 11/11/2024 04:14 PM nate 11/11/2024 04:14 PM 132M https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-78.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-78.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/3Ddrawings-78.zip
9 nate 11/11/2024 04:14 PM nate 11/11/2024 04:14 PM 132S https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-77.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-77.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/3Ddrawings-77.zip
10 nate 11/11/2024 04:14 PM nate 11/11/2024 04:14 PM 160L https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-89.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-89.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/3Ddrawings-89.zip
Frame Size

TECO MAXe3 MINING High Efficiency Datasheets

wdt_ID wdt_created_by wdt_created_at wdt_last_edited_by wdt_last_edited_at KW Rating Voltage Phases No of Poles Frame Datasheet PDF
1 nate 11/11/2024 01:29 PM nate 20/11/2024 02:31 PM 0.18 240 3 2 63 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/11/TECO-MAXe3-MINING-High-Efficiency-1.pdf
2 nate 11/11/2024 01:29 PM nate 20/11/2024 05:03 PM 0.18 415 3 2 63 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/11/TECO-MAXe3-MINING-High-Efficiency-2.pdf
3 nate 11/11/2024 01:29 PM nate 20/11/2024 02:34 PM 0.18 240 3 4 63 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/11/TECO-MAXe3-MINING-High-Efficiency-3.pdf
4 nate 11/11/2024 01:29 PM nate 20/11/2024 05:03 PM 0.18 415 3 4 63 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/11/TECO-MAXe3-MINING-High-Efficiency-4.pdf
5 nate 11/11/2024 01:29 PM nate 20/11/2024 02:34 PM 0.18 240 3 6 71 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/11/TECO-MAXe3-MINING-High-Efficiency-5.pdf
6 nate 11/11/2024 01:29 PM nate 20/11/2024 05:04 PM 0.18 415 3 6 71 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/11/TECO-MAXe3-MINING-High-Efficiency-6.pdf
7 nate 11/11/2024 01:29 PM nate 20/11/2024 02:35 PM 0.18 240 3 8 80 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/11/TECO-MAXe3-MINING-High-Efficiency-7.pdf
8 nate 11/11/2024 01:29 PM nate 20/11/2024 05:05 PM 0.18 415 3 8 80 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/11/TECO-MAXe3-MINING-High-Efficiency-8.pdf
9 nate 11/11/2024 01:29 PM nate 20/11/2024 05:05 PM 0.37 240 3 2 71 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/11/TECO-MAXe3-MINING-High-Efficiency-10.pdf
10 nate 11/11/2024 01:29 PM nate 11/11/2024 01:29 PM 0.37 415 3 2 71 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/Datasheet-9.pdf
KW Rating Voltage Phases No of Poles Frame

Features
  • High Efficiency Motors
  • True IP66 with porous drain plugs
  • Class H insulation system
  • Superior inverter- rated insulation (8500V/microsecond)
  • Precision and rugged cast iron construction including fan
  • Typical temperature rise less than Class E
  • 1.2 service factor @ 40 deg C ambient
  • Suitable for 60 deg C ambient at rated output
  • TECO renowned grease relief system
  • Two sets of thermistors for frames D160 and larger
  • IECEX Ex e, Ex nA, Ex tD ready (to order)
  • TECO Mining specification
  • X15 Orange paint finish
  • Mountings available -Foot, Foot and D Flange, D Flange
  • Foot and C Face (to 132 frame only)
  • C Face (to 132 frame only)
  • 2 year warranty

Benefits
  • Enhanced protection against dust and water
  • High-quality insulation system ensures safe and efficient operation
  • TECO superior inverter duty insulation system
  • Robust cast iron construction guarantees durability and reliability
  • Lower temperature rises for improved performance
  • High service factor allows for reliable operation in demanding conditions
  • Suitable for use in high-temperature environments up to 60 deg C ambient
  • TECO’s grease relief system ensures optimal lubrication and extends motor life
  • Thermistors provide added protection for larger frames, enhancing motor safety
  • Compliance with IECEX Ex e, Ex nA and Ex td standards enables usage in hazardous environments
  • Versatile mounting options for easy installation and compatibility with different setups

Brochures

Manuals

Software

No software downloads.

Drawings

TECO MAXe3 MINING High Efficiency Drawings

wdt_ID wdt_created_by wdt_created_at wdt_last_edited_by wdt_last_edited_at Frame Size PDF Drawings CAD Drawings 3D Drawings
1 nate 11/11/2024 04:14 PM nate 11/11/2024 04:14 PM 63 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-38.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-38.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/3Ddrawings-38.zip
2 nate 11/11/2024 04:14 PM nate 11/11/2024 04:14 PM 71 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-45.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-45.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/3Ddrawings-45.zip
3 nate 11/11/2024 04:14 PM nate 11/11/2024 04:14 PM 80 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-53.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-53.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/3Ddrawings-53.zip
4 nate 11/11/2024 04:14 PM nate 11/11/2024 04:14 PM 90L https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-61.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-61.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/3Ddrawings-61.zip
5 nate 11/11/2024 04:14 PM nate 11/11/2024 04:14 PM 90S https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-57.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-57.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/3Ddrawings-57.zip
6 nate 11/11/2024 04:14 PM nate 11/11/2024 04:14 PM 100L https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-66.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-66.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/3Ddrawings-66.zip
7 nate 11/11/2024 04:14 PM nate 11/11/2024 04:14 PM 112M https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-70.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-70.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/3Ddrawings-70.zip
8 nate 11/11/2024 04:14 PM nate 11/11/2024 04:14 PM 132M https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-78.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-78.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/3Ddrawings-78.zip
9 nate 11/11/2024 04:14 PM nate 11/11/2024 04:14 PM 132S https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-77.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-77.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/3Ddrawings-77.zip
10 nate 11/11/2024 04:14 PM nate 11/11/2024 04:14 PM 160L https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/PDFdrawings-89.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/CADdrawings-89.zip https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/3Ddrawings-89.zip
Frame Size

Data Sheets

TECO MAXe3 MINING High Efficiency Datasheets

wdt_ID wdt_created_by wdt_created_at wdt_last_edited_by wdt_last_edited_at KW Rating Voltage Phases No of Poles Frame Datasheet PDF
1 nate 11/11/2024 01:29 PM nate 20/11/2024 02:31 PM 0.18 240 3 2 63 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/11/TECO-MAXe3-MINING-High-Efficiency-1.pdf
2 nate 11/11/2024 01:29 PM nate 20/11/2024 05:03 PM 0.18 415 3 2 63 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/11/TECO-MAXe3-MINING-High-Efficiency-2.pdf
3 nate 11/11/2024 01:29 PM nate 20/11/2024 02:34 PM 0.18 240 3 4 63 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/11/TECO-MAXe3-MINING-High-Efficiency-3.pdf
4 nate 11/11/2024 01:29 PM nate 20/11/2024 05:03 PM 0.18 415 3 4 63 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/11/TECO-MAXe3-MINING-High-Efficiency-4.pdf
5 nate 11/11/2024 01:29 PM nate 20/11/2024 02:34 PM 0.18 240 3 6 71 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/11/TECO-MAXe3-MINING-High-Efficiency-5.pdf
6 nate 11/11/2024 01:29 PM nate 20/11/2024 05:04 PM 0.18 415 3 6 71 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/11/TECO-MAXe3-MINING-High-Efficiency-6.pdf
7 nate 11/11/2024 01:29 PM nate 20/11/2024 02:35 PM 0.18 240 3 8 80 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/11/TECO-MAXe3-MINING-High-Efficiency-7.pdf
8 nate 11/11/2024 01:29 PM nate 20/11/2024 05:05 PM 0.18 415 3 8 80 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/11/TECO-MAXe3-MINING-High-Efficiency-8.pdf
9 nate 11/11/2024 01:29 PM nate 20/11/2024 05:05 PM 0.37 240 3 2 71 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/11/TECO-MAXe3-MINING-High-Efficiency-10.pdf
10 nate 11/11/2024 01:29 PM nate 11/11/2024 01:29 PM 0.37 415 3 2 71 https://electricmotors.teco.com.au/wp-content/uploads/sites/53/2024/04/Datasheet-9.pdf
KW Rating Voltage Phases No of Poles Frame
