Rotating the World Sustainably & Reliably with TECO’s Solutions
High-Quality Metric Frame Motors: Reliable Performance and Compliance with Industry Standards. IP55 Protection. Tested according to the AS4429-1999. Enhanced Thermal Protection

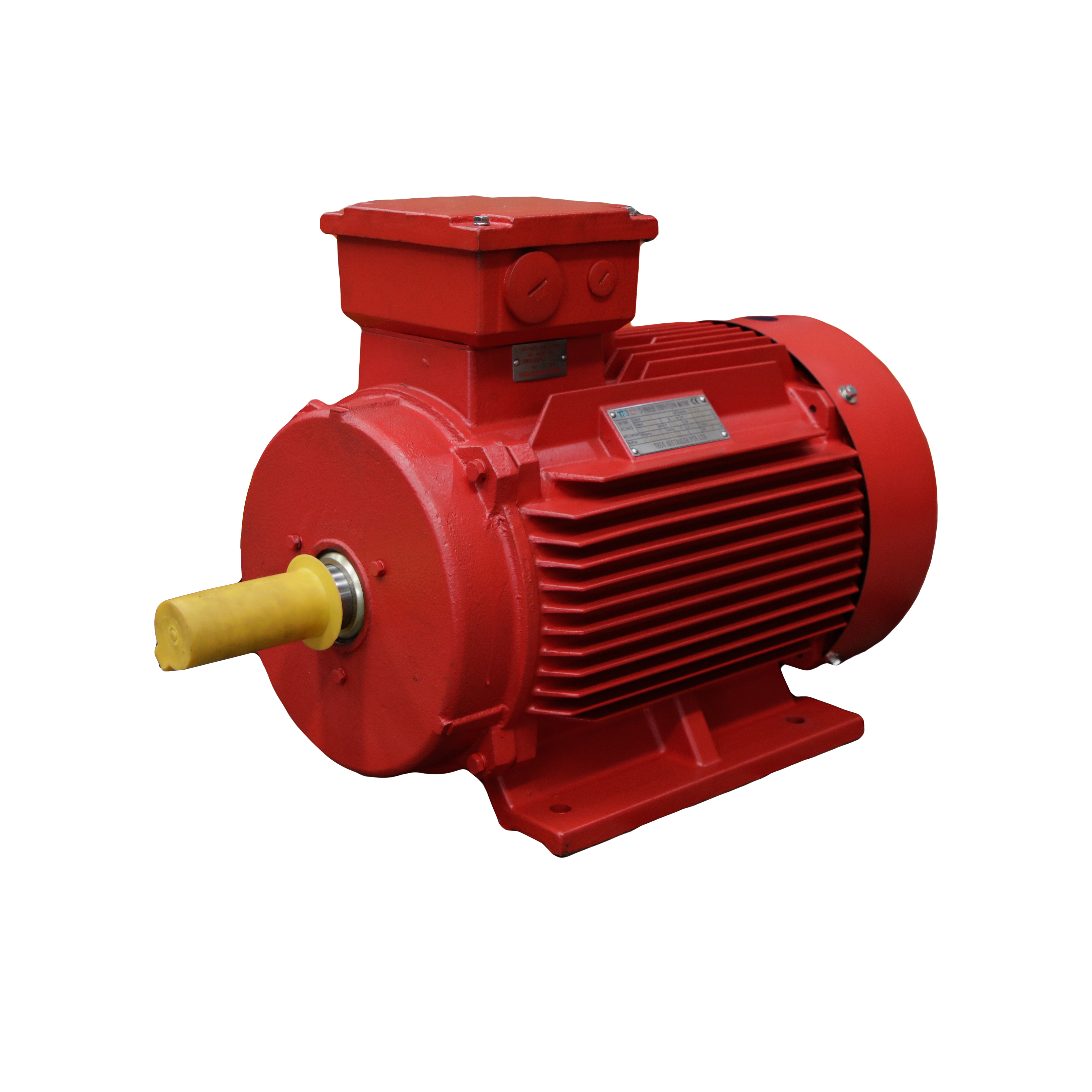

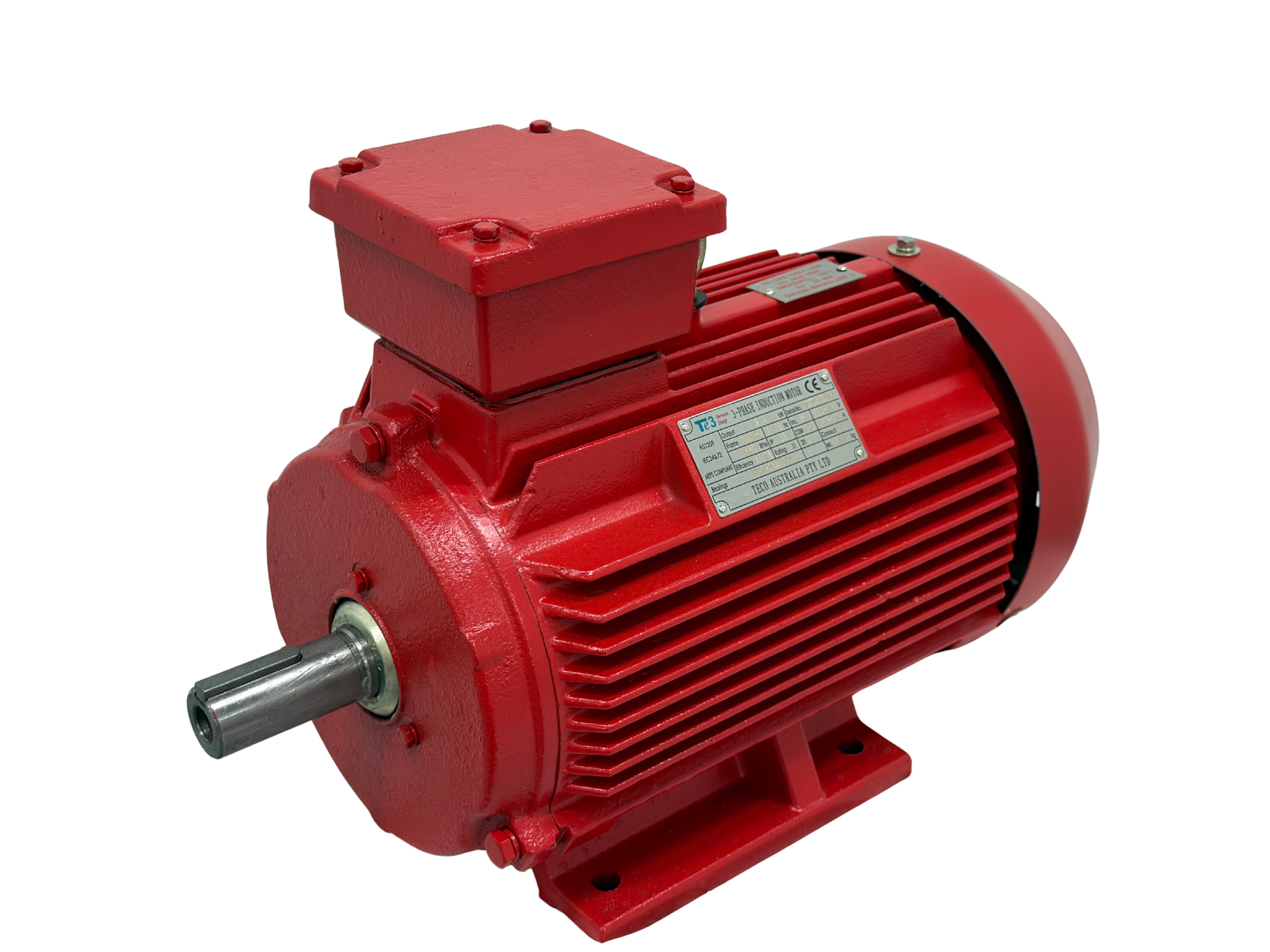

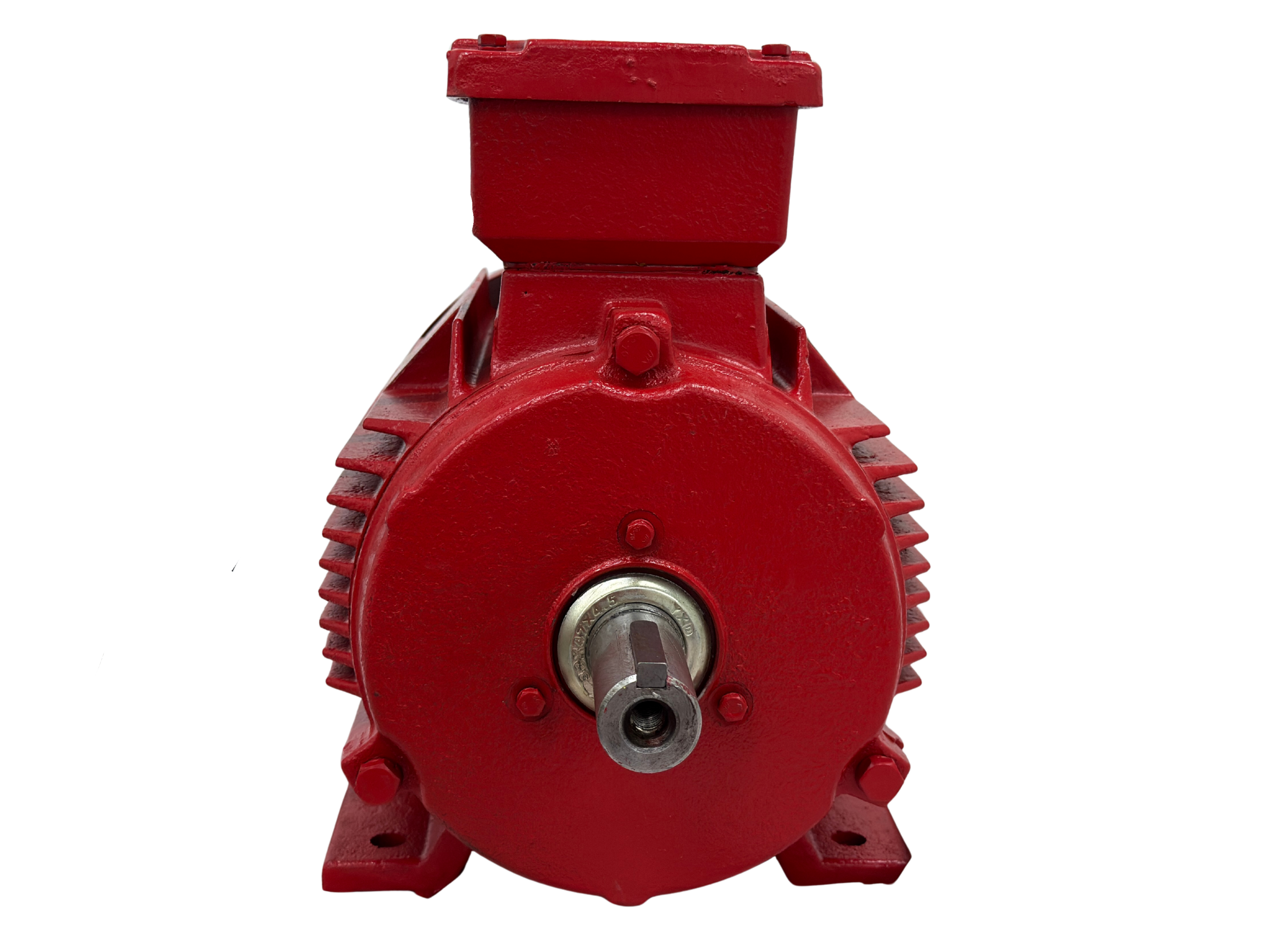

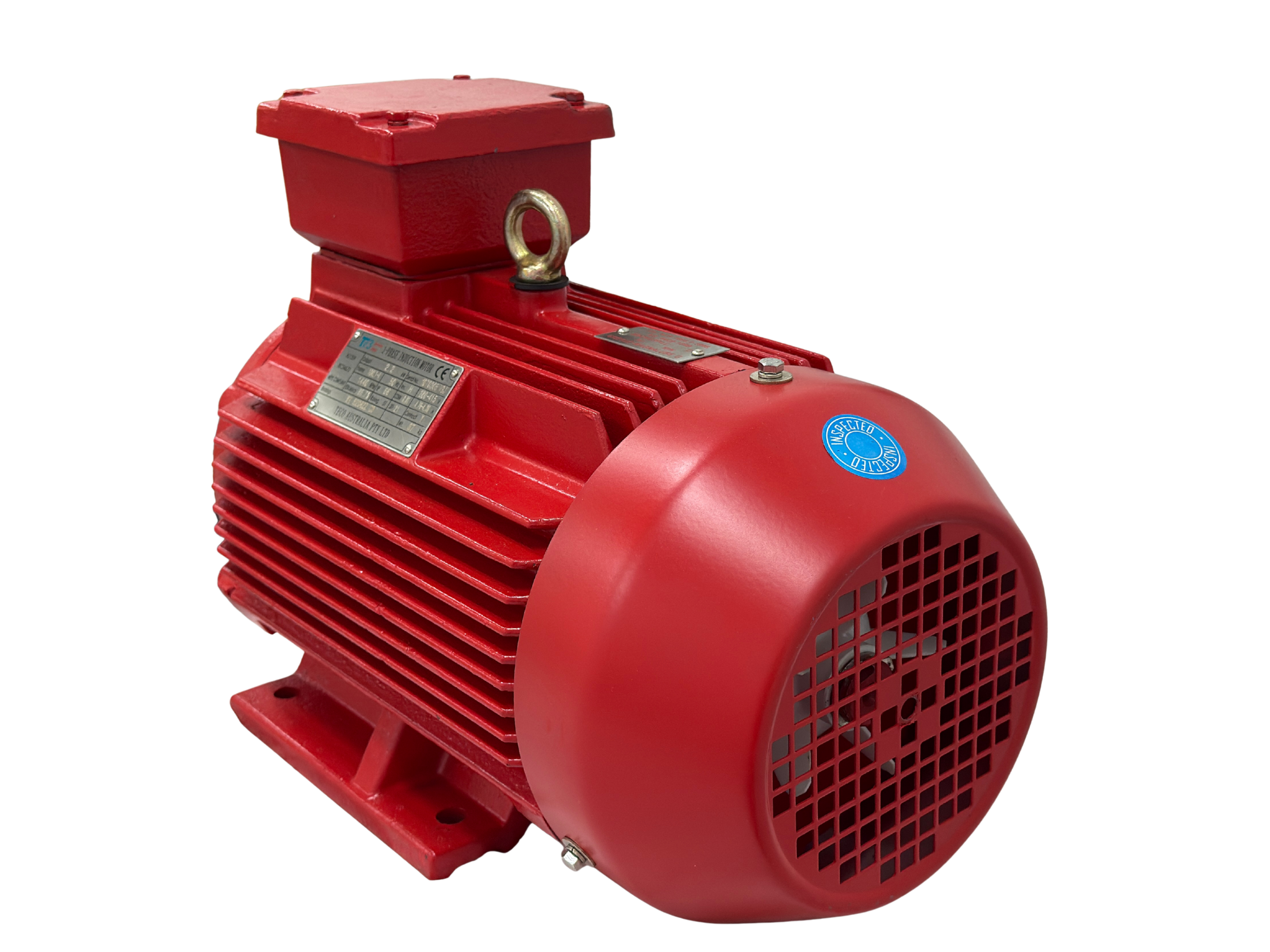

TECO Te3 Smoke Spill Electric Motors comply with IEC60034 a frame allocation standard and meets the IEC60034-30-1 (IE3) efficiency standard.
It is tested according to the AS4429-1999 Test Method and are built with Class F or Class H insulation for enhanced thermal protection.
With ratings ranging from 1 to 3, TECO Te3 Smoke Spill Electric Motor can withstand temperatures up to 300°C for 120 minutes for class H insulation or up to 200°C for 120 minutes for class F.
Suitable for both dual-purpose and emergency applications, TECO Te3 Smoke Spill Motors cover a power range of 0.55kW to 110kW and are available in frames D80 to D315S-4.
It operates at speeds of 4 poles and slower.
Designed with an IP55 protection rating, our motor features a durable cast iron construction and comes with a top-mounted or remote terminal box with fly leads.
To ensure customer satisfaction, the motor comes with a 2-year warranty, providing support and coverage against manufacturing defects.
